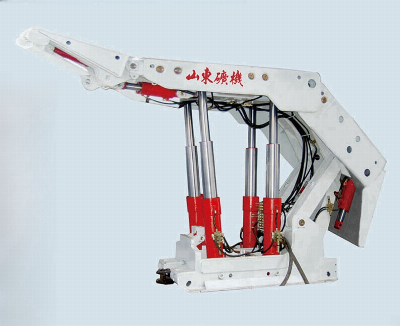

Mesh Laying Hydraulic Support PRODUCTION INTRODUCTIONThe product is suitable for supporting the roof of the mining face in coal mines, maintaining a safe working space, and transporting equipment for moving work. The characteristics of the mesh laying bracket: The bracket adopts a positive four-link mechanism, which improves the bracket's ability to resist eccentric loads and overall stability, and has strong adaptability to changes in external load action points. The rear safety space is large, providing assurance for rear mesh laying and equipment maintenance.TECHNICAL SPECIFICATIONS AND PARAMETERS Mesh Laying Hydraulic SupportWorking Resistance rangeSupport Height Range (mm)Center Distance(mm)Control MethodRemarksZP2800~40001600~24001500 Manual ControlFour-pillar Double Telescopic1600~2600Manual Control1700~2800Pilot Control1700~3200Manual Control1700~3500Manual ControlZP4200~60001600~2600Manual Control1700~2800Manual Control1700~3200Pilot Control1800~3300Manual Control1800~3500Pilot Control1800~3800Pilot ControlZP6800~86001600~3200Manual Control1700~3500Manual Control1800~3800Manual Control2000~3800Pilot Control2000~4000Pilot Control2000~4200Manual ControlZPY3200-46001600~2600Manual ControlTwo-pillar Single Telescopic1700~2800Manual Control1600~3200Pilot Control1700~3200Manual Control1700~3500Pilot ControlZPY4800~60001400~2800Pilot Control1400~3000Manual Control1500~3200Pilot Control1700~3500Manual Control1800~3500Pilot ControlVARIOUS HYDRAULIC SUPPORTS SUPPLYWe can supply various kinds of hydraulic supports including shield hydraulic support, support shield hydraulic support, top coal caving support, mesh laying support, lightweight support, and support for miscellaneous mining coal seams such as extremely thin coal seams, large dip coal seams and steep dip coal seams, to meet the requirements of different rock relationships and mining processes. At present, hydraulic supports have formed various series of products with working resistance ranging from 1100KN to 26000KN and support height ranging from 450mm to 8800mm.HYDRAULIC SUPPORT WORKSHOPCOMPANY INTRODUCTIONSTRONG PRODUCTION & TESTING CAPABILITYCOAL MINING MACHINERY AND SPARE PARTS SUPPLYEPC/BOT CONTRACTING SERVICE FOR VARIOUS BELT CONVEYORSCONVEYOR SPARE PARTS SUPPLYCERTIFICATES & HORNORS BRANCHES & OFFICESTEAM BUILDINGSTRATEGIC COOPEATORSMAIN CUSTOMERSCUSTOMER VISITSDOMESTIC & OVERSEAS EXHIBITIONSSINGING CEREMONYGLOBAL BUSINESS NETWORK/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
