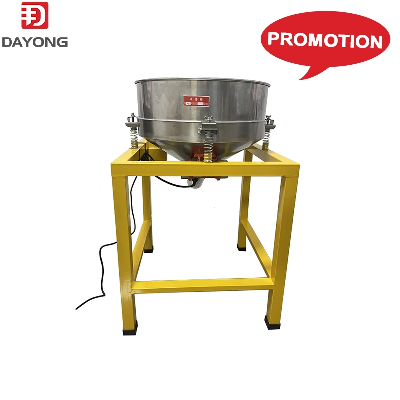

500mm Diameter Stainless Steel Sieving Electric Coating Sieve

Specifications:Voltage: 110VMaterial: Stainless steelOverall Height(contain the screen): 25.5"(65cm)Screen Size: Φ19.6"x6.3"(50x16cm)(Diam.XH)Daily Output: 4409lbs(2000kg)Outlet Port Height:11.8"(30cm)We could supply one screen:(micron size),80 meshProduct Description:This machine is composed of the vertical vibration motor, one 80 mesh screen, square frame, vibrating springs, and all fasteners, etc. It can be operate for the sorting purpose either in single sieve or multi sieves with a compact structure, easy operation, low noise, fine powder, and wide applicability etc.Working principle:The basic principle of vibration screening filter is the heavy hammer (unbalanced heavy hammer) installed in the electrical axis transform the motor's rotary motion into horizontal, vertical, tilt motion (three-D movement), then this movement passed to the screen surface. Adjust the upper and lower ends of heavy hammer's phase angle, this can change the trajectories of materials on the screen surface.Application:1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.6) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.Feature:Suitable for powder, liquid materials with ultra-high efficiency filter compact and durable design.Unique grid design to solve screen mesh blockage and sinkage, easy to clean.Powder will not fly, liquid will be impermeable with its good sealing.The material discharged automatically, and the machine can be operated continuously.The machine use vertical vibration motor, no mechanical transmission, so exciting force transfer process without loss, effectively transmitted to the screen surface.The sifter machine is light-heavy and easy to move.It can be a single layer and multi-sieve use, the part do not have dead ends, cleaned and disinfected easily.The screen is made of stainless steel mesh part.Relate productOur company/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
