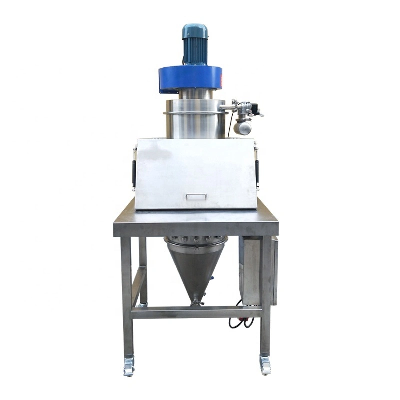

Food Industry Small Bag Feeding Station

Product DescriptionThe dust-free feeding station is a transfer device that utilizes negative pressure dust collection, suitable for the opening and feeding of transfer materials during the production process. The material can be stored first, then transported, and used in conjunction with a dust collection system to effectively avoid dust flying. The conical part of the silo is equipped with a vibrator to aid in the flow of materials. A screening system can be installed in the silo to prevent blockages of agglomerated materials in the discharge port and conveying pipeline. Designed according to user needs, the materials, dust, and related equipment generated during feeding are effectively isolated from the human body, so that under the negative pressure condition of the fan, the dust and powder are sucked into the filtration system, separating the gas and materials. When the materials accumulate too much, they fall into the material warehouse due to self weight.Technical ParameterModelWT100WT150Volume(L)80120Power(W)110001000Compressed air consumption2/pressure(L/min)/MPa50/0.650/0.6Discharge interfaceQuick installation 6inchQuick installation 8inchweight(Kg)150200Overall dimensions(mm)L×W×H900×700×16001050×800×1850Notice:1.The power of the selected fan and its electrical appliances is not included.2.Only the compressed air consumption required for the reverse blowing device.In serivceProduct FeaturesThe bag opening station has a simple structure and is easy to operate;★ The tapping equipment can ensure the smooth entry of materials from the large bag into the next process;★ Closed bag opening, preventing dust from flying, improving the working environment, and reducing production costs;★ Integrated design of bag opening, tapping, and dust collection, with a compact structure and convenient operation;★ Can provide pneumatic or electric control methods for remote monitoring;★ Applicable working conditions: Large bag packaging materials for powder and granular materials;★ It has the characteristics of large processing capacity, compact structure, advanced technology, stability and reliability, and simple maintenance.Common troubleshootingWhen there is a malfunction in the dust-free feeding station, please check according to the following procedure first:Fault phenomenonFault causeTroubleshootingNo backflushingThe compressed air valve is not openOpen the compressed air valvePulse valve malfunctionCheck pulse valveFilter cloggedReplacing the filter elementNo electric vibrationDamaged vibration motorReplace the vibration motorThe vibration motor is not powered onConnect the power supply to the vibration motorSlow or no fan extractionFan damageReplacing the fanFilter cloggedReplacing the filter elementIf the fault cannot be eliminated after following the processing methods listed in the above table. Please contact our sales personnel in a timely manner so that we can quickly diagnose the cause and troubleshoot the problem for you.Application IndustryCustomer Reference  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
