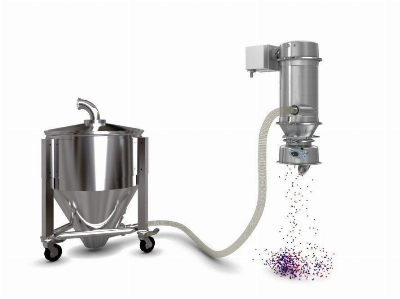

Fx Series Vacuum Conveyor Feeding Station for Ingredient Powder

  Product DescriptionVacuum conveying equipmentThe vacuum feeding machine manufactured by Rongxin Technology is a dust-free closed pipeline conveying equipment that uses vacuum suction to transport powder, granular materials, and powder particle mixtures. It utilizes the pressure difference between vacuum and environmental space to form gas flow in the pipeline, driving the movement of powder and granular materials, thereby completing the transportation and transfer of powder. It is widely used in industries such as food, pharmaceutical, chemical, rubber and plastic. In terms of structure, the vacuum feeding machine is composed of a vacuum pump (or fan), a conveying hose, a filter, a back blowing device, a discharge valve device, a hopper, and an automatic control device.Product Parameters                                        Model  ParameterFX-14FX-33FX-56Valume(L)143356Power(W)200200200Compressed air consumption/pressure(L/min)/Mpa100/0.6100/0.6200/0.6Vacuum pumping interfaceQuick installation 2inchQuick installation 3inchQuick installation 4inchFeeding interfaceQuick installation 2inchQuick installation 3inchQuick installation 4inchProduction Capacityt/h2.5-5.54-76-8Weight(kg)374065Overall dimensions(mm)D*Hφ400*1000φ400*1250φ650*1350Main Structures    Advantages of Vacuum conveyor 1. Closed transportation, no dust leakage, no cross contamination;2. Comply with GMP standards, meet CIP requirements, and provide sterile products;3. Modular design, eliminating dead corners, quick and convenient disassembly and cleaning;4. Effectively solve the layering phenomenon of powder particles;5. Effectively eliminate material static electricity, without causing pollution to the surrounding environment;6. Automatic control, simple and convenient operation;7. No heat generated during work, safe and explosion-proof;8. No vibration, low noise, high performance, energy-saving, and low operation and maintenance costs.  In-ServiceCustomer referenceCertification  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
