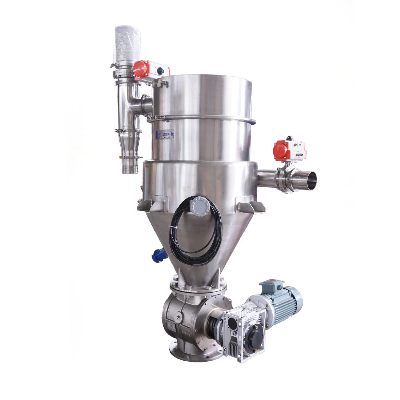

Dust Free Mobile Pepper Powder Conveyor

  Product DescriptionVacuum Suction Conveyor is a relatively advanced and ideal vacuum conveying equipment for powder materials and powder particle mixtures in China. It can automatically transport various materials to the hopper of packaging machines, injection molding machines, crushers, and other equipment, as well as directly transport the mixed materials to the mixer (such as V-type mixer, two-dimensional mixer, three-dimensional mixer, etc.), reducing the labor intensity of workers and solving the problem of dust overflow during feeding.  Product Parameters                                     Model ParametersRX-14RX-33RX-56Volume(L)143356Power(W)200200200compressed air consumption/pressure(L/Min)/Mpa100/0.6100/0.6100/0.6Vacuum pumping interfaceQuick installation  2inchQuick installation  3inchQuick installation  4inchInlet interfaceQuick installation  2inchQuick installation  3inchQuick installation  4inchCapacity t/h2.5-5.54-76-8Weight(kg)374065Overall Dimension(mm) D*HΦ400*1000Φ400*1250Φ650*1350Main Structures      Product FeaturesClosed conveying, No dust leak, No cross contaminationModular design, no dead corner, quick and convenient disassembly and cleaningEffectively eliminating material static electricity, explosion-proofAutomatic control, simple and convenient operation, and no heat generation during the working process.No vibration, low noise, efficient and energy-saving, low operating and maintenance costs. Tangential suction reduces filter load and improves dust collection efficiency.Inner surface bull polishing and external surface wire drawing or bull polishing, qualified GMP standard.Built in cleaning balls and components, enabling online cleaning (CIP) and sterilization (SIP) of equipment  In-ServiceAdvantages of Vacuum conveyor (1) Suitable for centralized transportation of materials from multiple points to one point. Attract and transport dispersed materials from various locations in sequence.(2) There are special conveniences for transporting materials with a large stacking area or installed at high levels in the ground or deep.(3) The lower part of the material tank or hopper is narrow, so choosing a suction type is very convenient.(4) The feeding point will not generate dust flying,(5) The feeding point can be opened,(6) The feeding method has a simple structure.(7) The suction type will not cause air pollution due to pipeline leakage.ApplicationThe conveying system of the vacuum feeding machine can be used in conjunction with main process equipment such as mixers, granulators, packaging machines, vibrating screens, reaction kettles, etc. To achieve the transportation and transfer of powder materials between various production links in the solid powder and particle production process of the powder industry.Widely used in pharmaceutical raw materials API, food powder, battery materials, fine chemicals and other fields, greatly optimizing the production process and improving the production environment. Customer Reference/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
