Powder Ton Bag Unloading System Jumbo Bag Discharge Machine

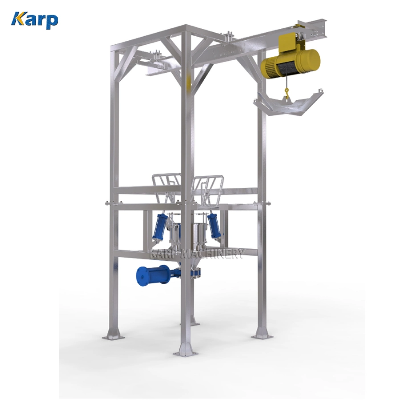

Powder Ton Bag Unloading System Jumbo Bag Discharge MachineProduct DescriptionBrief description:Powder Ton Bag Unloading System Jumbo Bag Discharge Machine is a specialized equipment designed for feeding and unpacking large packaging bags, specifically addressing issues such as dust overflow and excessive dust emissions during the feeding process. It is primarily used for unpacking and unloading granular and powdered materials contained in bulk bags, including food ingredients, chemical raw materials, additive, lithium battery industry, rubber and plastic industries, energy batteries, paint industry, and the coatings industry. Two models are available:1. D-TL-1Suitable for big bag (larger than 1 ton) unloading  Working principle:The Big Bag Unloading Station lifts the bulk bag to the top of the feeding inlet of the equipment through the electric hoist. The inner bag of the big bag is manually fixed at the clamping mouth of the equipment, and the big bag is clamped and sealed by the bag holder to prevent dust overflow. The bag is then manually opened and unloaded, aided by devices such as beaters and vibrators, to facilitate complete unloading of the material inside the bulk bag. The unloaded material can be directly fed into the equipment of the next process or used for unpacking and feeding in pneumatic conveying or screw conveying systems.1. D-TL-2Suitable for big bags and small bags unloading  Working principle:D-TL-2 series big bag unloading machine added the feeding function of small bag packaging materials based on D-TL-1 Big bag unloading station. When unpacking big bags, it is equivalent to D-TL-1. When unpacking small bags, the dust collection fan of the dust collection box can avoid the material dust flying everywhere. When the material is unpacked and poured into the next process, it only needs to be manually unpacked directly into the system. When the material passes through the vibrating screen, the big size material and foreign matter can be intercepted, so as to ensure the removal of particles which are unqualified.Main features:1. Meet GMP certification and food hygiene certification standards. Applicable field: food, chemical, additive, lithium battery industry and other industries.2. According to different materials it is made of mild steel, stainless steel 304, stainless steel 316, Ti steel, etc.3. Simple structure, easy operation, enclosed and no dust flying. Improve the working environment, sealingwell, no leakage, less residue.4. According to the variety of packaging specifications, bag filling rate and material characteristics, etc., it can be designed according to customer requirements.5. It can work with vacuum feeder, screw conveyor, vibrating feeder and other conveying machines to transfer the material into next production equipment, such as mixer, silo, reactor, vibrating screen, etc.  Product ParametersPowder Ton Bag Unloading System Jumbo Bag Discharge MachineEquipment height[3000mm, 5000mm]Air consumption(0L/min, 0.6L/min)Bag caliber300mmVacuum flow(0L/min, 90L/min)Air source pressure6barVacuum pressure(-92.5kpa, 0kpa)Equipment weight[1000kg, 5000kg]Throughput (capacity)(0.1T/h, 6Т/h)Blanking butterfly valve caliber[150mm, 200mm]Item restrictionsSticky materialApplicable Material PropertiesMaterial TypePowderGranuleLiquidMaterial temperature[-10ºC, 70ºC)[-10ºC, 70ºC)/Material Humidity(0%RH, 20%RH)(0%RH, 20%RH)/Material particle size(0.2um, 10mm)(0.2um, 10mm)/Notes: The parameter above is just for reference. Please contsct us to get more details information.  Product ShowD-TL-1 Big Bag Unloading Machine made of stainless steelSmall bag unloading station on the D-TL-2 bulk bag unloading systemPowder Ton Bag Unloading System Jumbo Bag Discharge MachineBig Bag Unloader works with vacuum conveyorBig bag unloading station works with screw conveyorBig Bag Unloading Station with carbon steel frame  ApplicationPowder Ton Bag Unloading System Jumbo Bag Discharge Machine is mainly used for unpacking and unloading big bags of granular and powdery materials in food industry, chemical industry, additive, lithium battery industry, rubber and plastic industry, energy batteries industry, paint industry, etc.1. All dry, well-flowing materials, such as fertilizers, animal feed, flakes, cereals, sugar, metallurgical concentrates, wood pellets, floor screeds, cement, circulating products, soil, peat, etc. 2. Plastic resins and food additives and other dry powder and granular materials. 3. Flavors and fragrances, monosodium glutamate, adsorbents, catalysts, graphite, rouge, blush, polyethylene, polypropylene, polyoxyethylene, fertilizers, feed, premixes, additives, laundry powder, salt, monosodium glutamate, chicken essence, sugar, seeds and other materials. 4. Bulk bag packaging materials with poor fluidity, easy moisture absorption and caking.Related Products                      Vacuum conveyor                                             Small bag dumping station
