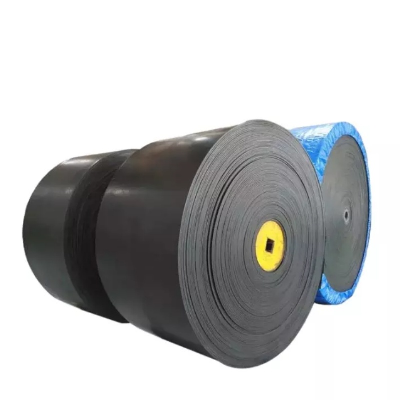

Belt typeFabric typeSingle Fabric strength(N/mm)Rubber cover thickness (mm)Total thickness (mm)PlyBelt width (mm)Belt length (m)/rollTop rubberBottom rubberCotton Canvas (CC) conveyor beltCC-56563.0-6.01.5-6.03-303-12300-2800200 Nylon (NN) conveyor beltNN100100NN150150NN200200NN250250NN300300NN400400NN500500NN600600Polyester (EP) conveyor beltEP100100EP150150EP200200EP250250EP300300EP350350EP400400EP500500EP600600 Rubber performance levels of conveyor beltLevel CodeTensile strength Mpa≥Elongation at break % ≥Wear mm3 ≤D1840090H25450120L20400150P14350200Note:D-strong wear working conditions;H-strong draw crack working condition;L-general working conditions;P-oil resistant,heat resistant,acid and alkali resistant,cold resistant and general flame resistant conveyor belt.The conveyor belt is a composite product of rubber, fiber, metal, or plastic and fabric used for carrying and transporting materials in the belt conveyor belt. Conveyor belts are widely used in cement, coking, metallurgy, chemical industry, steel and other industries.Conveyor belt and belt conveyor are widely used in agriculture, industrial and mining enterprises and transportation industry to transport various solid block and powder materials or finished articles. The conveyor belt can be used continuously, efficiently, and at a large angle. The conveyor belt is safe to operate. The conveyor belt is simple to use, easy to maintain, and low in freight. It can also shorten the transportation distance, reduce the project cost, and save manpower and material resources.Strength standard of conveyor beltCommon conveyor belt shall comply with GB7984-2001 standard.Ordinary conveyor belt: covering layer: tensile strength is not less than 15Mpa, breaking elongation is not less than 350%, and abrasion is not less than 200mm3; The average value of longitudinal sample of interlaminar bonding strength between layers shall not be less than 3.2N/mm; The distance between the covering glue and the cloth layer shall not be less than 2.1N/mm; The longitudinal tensile elongation of full thickness shall not be less than 10%; The elongation of the longitudinal reference force of the full thickness shall not be greater than 1.5%.The covering layer of nylon (NN) and polyester (EP) conveyor belts shall have a tensile strength of not less than 15Mpa and a elongation at break of not less than 350%. The average value of the longitudinal sample of the interlaminar adhesive strength shall be not less than 4.5N/mm between layers, not less than 3.2N/mm between the covering glue and the cloth, not less than 10% of the longitudinal tensile elongation of the full thickness, not more than 4% of the longitudinal reference force elongation of the full thickness. The covering glue shall be made of rubber and plastic, and the tensile strength coefficient of the skeleton at the national standard level, It can be lapped into a ring. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
