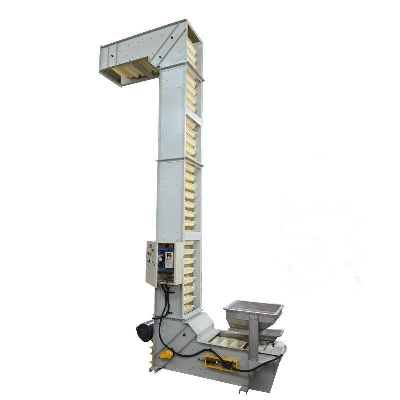

Z-Type Continuous Vertical Conveyor

Production DescriptionBucket elevator is a commonly used vertical conveying equipment, mainly used to transport materials such as particles, powders, or loose materials from low to high. It is composed of multiple components such as the feeding port, sprocket, discharge port, and driving device. The bucket conveyor is driven by a rotating chain or belt to operate, achieving continuous material transportation.Structures1,Compact structure, small footprint, high lifting height, good sealing performance, and no damage to materials2,Flexible composition, capable of combining horizontal, vertical, and horizontal conveying3, Can be fed at single or multiple points4,Low dynamic power, energy-saving, environmentally friendly, and easy maintenance  Technical ParametersModelParametersRXZD-3RXZD-6RXZD-10RXZD-15RXZD-20RXZD-25RXZD-30RXZD-35Conveying   capacity100%m³/h61522304556688075%L4.51116.522.533.5425160Silovolumemm36101520253035Widthmm370470870500560690815940Distancemm228.6330Chainchain pitchmm38.166Chain Qty-2Single chain breaking load(min)KN37.690sprocketTooth number-2622Pitch Diametermm316.09463.76Hopper running speedm/s≤0.3≤0.25Max lifting heightm≤45Max horizontal conveying distance ≤100Total Powerkw0.75-221.1-222.2-225.5-225.5-30Optional configurationGood sealing performanceThe entire machine shell is sealed, with minimal leakage and environmental pollution, meeting environmental requirements.Reduced fragmentation of materials with high integrityThe entire process of feeding, conveying, and unloading has almost no damage to the object, reducing the scrap rate.Multi point feeding/unloadingIt can automatically feed/unload materials at single or multiple points, suitable for feeding multiple silos in a row.Product features:1,Environmentally friendlyThe entire machine shell is sealed, and there is no leakage or dust flying during operation, meeting environmental requirements.2, 0 DamagedThe entire process of feeding, conveying, and unloading does not damage the object itself, reducing the scrap rate.3,Types ModelsCan be used in Z-type, C-type, and ZC mixed types, suitable for various occasions.4, Point CuttingIt can automatically cut materials at single or multiple points, suitable for feeding multiple silos in a row.5, Anti Overflow MaterialsIt can be equipped with a vibrating feeder and fed at a constant speed, overcoming the phenomenon of full hopper overflow.6. Space SavingCompact structure and small footprint.Application:The stainless steel Z-type elevator, due to its flexible application and diverse layout forms, can simultaneously transport bulk materials horizontally and vertically, and can achieve multi-point feeding and multi-point discharge. The transportation of granular materials is not easy to break, and the equipment has a wide range of applications and strong adaptability. It is a good material transportation equipment. At present, it has been applied in industries such as chemical industry, medical industry, coal chemical industry, refractory materials, industrial activated carbon, metallurgy, industrial solid waste, non-metallic mineral products, etc.Customer Reference  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
