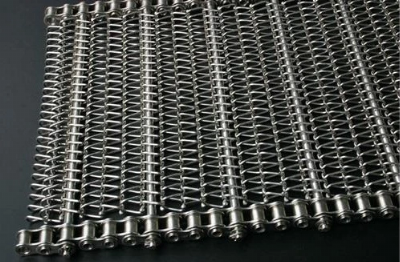

Stainless Steel Chain Spiral Conveyor Belt Mesh

1.Introduction of Spiral Conveyor Wire Mesh Belt/Metal Conveyor Mesh Belt This Belt is approximately symmetrical spiral weaving, institutional double-helical rod and made a derect rail connection string,Therefore, mesh belt running smoothly,go the wrong phenomenon of smaller, maintanance splicing is also more convenient.2.Specifications of Spiral Conveyor Wire Mesh Belt/Metal Conveyor Mesh Belt (1).material: ss302,304,316,316L,ect.(2).wire dia: 0.8-6mm(3).with: customer's request(4).length: customer's requestChain driven conveyor belt material:Carbon steel;Galvanized steel;High temperature steel;Stainless steel 304, 316 or 316L.Item NameSpecifcationMaxMinRemarkSpiral wireLink beltWidth4.0m0.2mInclude side chain widthLength50m1.0m  Wire diameter5.0mm0.5mmUsual 1.0 - 3.0mmSpiral pitch20mm3.0mm  Cross wire pitch50mm5.0mm  Support rod12.0mm4.0mmCommon 6.0 and           8.0mmMaterial gradeIron steel Q195 or 235Galvanized steel;High temperature steel;Stainless steel 304, 316 or 316L.                                    Driven typeSprockets and chains 3.Features of Spiral Conveyor Wire Mesh Belt/Metal Conveyor Mesh Belt (1).Straight running(2).Smooth surface for transportation of goods with small contact surface Small open area(3).enables transportation of small products(4).High density of the belt enables good accumulation and retaining of heat (5).Long lifetime 4.Application of Spiral Conveyor Wire Mesh Belt/Metal Conveyor Mesh Belt (1).cooling and carrying-away belt in glass(2).works conveyor belt to hardening and tempering furnaces(3).conveyor belt in food industry(4).conveyor belt in electrotechnical industry(5).heat treatment belt(7)pasteurizing belt furnace belt/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
