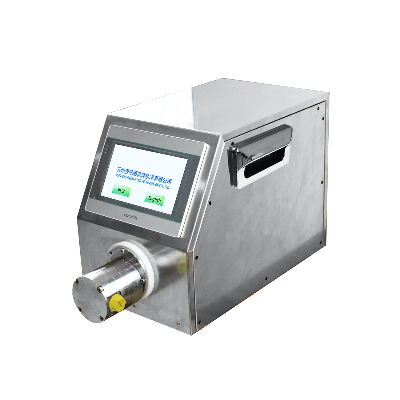

Quantitative Constant Flow Conveying System

Product Description Attentions:  1.400 Mesh filter shall be installed at the inlet of gear pump.  2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.Remarks:OEM service are avaiable according to your request.The specifications are only for reference, for details checking, please feel free to contact us.Product ModelProduct Parameters1.Product diagram and parts description2.Product size and configuration2-1   Product SizePump Displacement(ml/rev)Motor Power(W)L1(mm)inlet and outlet dimension N.W.(KG) Remark375084Rp1/212.9 675096Rp1/2(Rp3/4)13.2 12750117Rp3/4(Rp1)13.8 2-2   Product configurationSystem configurationNameQuantityBrandModelRemarkshuman-machine interface1Wecon/DwinPI3070IE/DMG80480C043-01W PLC1Taiwan vigorVS1-14MT servo system1RFactkawa750WEC-F1X20SN8*1,EC-F3CC075V-M2XN*K 1£Factkawa400WEC-F1X15SN8*1,EC-F2CH040V-M2XN*K power supply1Mean wellLRS-50-24 aviation plug1 GC16-44 cores (one set of input and output)3. Technical parameters3-1   Input power:AC220V             3-2   Rated power:850W      3-3   Main technical parameters of gear pump(1)displacement:3.00 ml/rev,6.00 ml/rev,12.0ml/rev        (2)Sealing material:PTFE/FFKM                                    (3)Pump body material:316L stainless steel                             (4)working temperature :-30ºC-70ºC(Customizable 70ºC-200ºC) (5)Pressure difference between inlet and outlet:12Bar(6)system pressure :20Bar           (7)Applicable medium: most solvents, weak acids, weak bases3-4.   Main technical parameters of servo motor (1)Power:750W     (2)speed:0~3000R/M (3)accuracy :17 Bit encoder3-5.   Main technical parameters of quantitative system       (1)Working mode: quantitative mode, Displacement mode3-6.   Sheet metal material: 304 stainless steel           bottom plate thickness:2mm,side plate thickness:1mm,and top plate thickness:1mm4.Operating instructions     4-1.   Boot screen           The user can enter the corresponding Chinese or English operation page through the corresponding buttons at the bottom of the interface4-2.   Home page The user can enter the corresponding operation page through the corresponding buttons at the bottom of the interface.4-3.   system setting              (1)Rated displacement: the rated displacement of gear pump in current system.              (2)Rated speed: current system servo motor rated speed.             4-4.   Quantitative model        (1)Revolution number setting:   The number of turns of the motor in the quantitative mode. Theoretical number of turns = theoretical volume / rated displacement, for example: rated displacement 6.00ml/rev, quantitative 100ml, theoretical number of turns = 100 / 6 is 16.7 turns; When the number of turns is set, it can be adjusted up and down from 16.7 turns           (2)Speed setting: motor speed in quantitative mode, not higher than rated speed.        (3)Interval time: delay time between completion of each quantitative filling in automatic mode.        (4)Quantity setting: the total number of filling required in automatic mode, and the machine will stop automatically after reaching the set value. If it is set to 0, it is the manual mode, Press start once to complete parameter setting only once; At this time, the external switch signal can also control the program.        (5)Revolution completed: the number of revolution completed currently.        (6)Completed quantity: the number of completed work in automatic mode or manual mode. In the automatic mode, when the set quantity is reached, stop and press the stop key to clear the quantity. 4-5.   Displacement mode            (1) Speed setting: the speed of motor in Displacement mode.           (2)Current speed: the real-time speed of the motor in the conveying mode.           (3)Setting time: the total running time set for the conveying mode. When the time is up, the machine stops working. If set to 0, it will run continuously after startup.At this time, the external switch signal can also control the program           (4)Working time: the current running time of Displacement  mode4-6.   External control mode      (1) In quantitative mode: start using when the quantity is set to 0.      (2) In conveying mode: start using when the time setting is all 0.1.Inner-hexagon screw*4          5.   Pin*2                        9.  Rear cover               13.  Countersunk head screw*42.Front cover                            6.  Driving gear         10.  O-ring 2                  14.  Isolation cover3.O-ring 1*2                              7.  Driven gear          11.  Internal magnetic steel4.Shaft sleeve*5                       8.  Pump body          12.  PlatenProduct FeaturesProduct Characteristics:No pulse, high precision.the external gear design makes the pump flow relatively unaffected by the system pressure,and the flow output has no pulsation, which can accurately measure the flow, and has strong repeatability.Stable transmission.Gear transmission can ensure constant instanta
