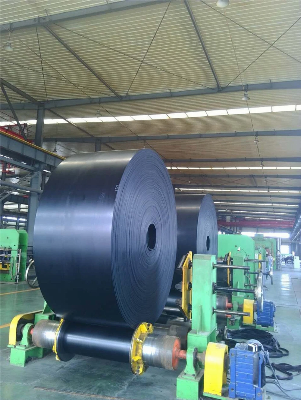

                        EP rubber conveyor belt used for mining   Polyester conveyor belts, also called EP conveyor belts, whose tension resistant body is canvas woven by polyester in warp and nylon-66 in weft. The belts have the characteristics of low elongation in warp and good trough ability in weft, good water resistance, good wet strength, no mould, suitable for medium, long-distance and heavy-load transportation of materials. Because of the high initial modulus of polyester, the belts can choose a relative low safety factor.Details:Fabric structure warp: polyesterFabric structure weft: polyamidBelt width 400-2400mmGrade X,Y,Z,W, MOR, N,M, RMAI, RMAIItensile strength 8-25mpaApplication  stone, cement plant, coal mine, copper mine Feature  High Strength, wear resistant, DurabilityModel type EP100-500Thickness  3+1.5,4+2, 5+2, 6+2Standard ·DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.Edge  molded edge and cut edgeFabric CC, EP, NNNN100, NN150, NN200, NN250, NN300, NN400l EP 250/2-3+1l EP 300/3-4+2l EP 400/3-4+2l EP 500/4-5+2l EP 630/4-6+2l EP 800/4-6+2Specification and technical data of rubber conveyor beltBelt TypeFabric Type(N/mm)Single Fabric Strength(N/mm)Single Fabric Thickness(mm)Rubber Top Bottom RubberPlyWidthRange(mm)Length(m)RollCotton Conveyor BeltCC--56 TC--7056 701.10 1.02-81.5-8 0-4.50-4.52-12300-260020-1000Nylon BeltNN1001000.702-10300-260020-1000NN1501500.75NN2002000.90NN2502501.15NN3003001.25NN4004001.50EPBeltEP1001000.75EP1501500.852-8300-260020-1000EP2002001.00EP2502501.20EP3003001.35EP3503501.50EP4004001.65Adhesion and elongation of the beltBeltAdhesive strdngthElongationcarcassBetween pliesN/mm Between rubber and carcassLongitudinal elongation at breakLongitudinal elongation at reference load N/mmRubber thicknessRubber thickness%>=%=4.50>=3.2>=3.5104Cover properties of the belts: Cover gradeTensile strengthElongationAbrasionChange Rate of tensile strength and elongation after aging >=>=
