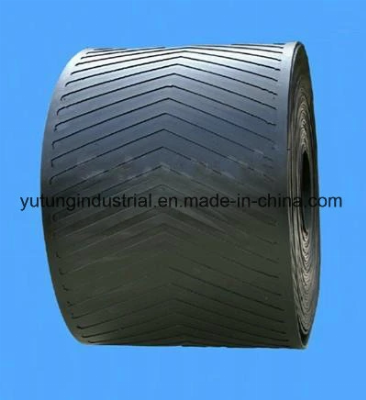

Cotton Fabric Ep Nylon Pattern Oil Resistant Conveyor Belt

 Product Description Conveyor beltFEATURES The carcass of this belt is made from cotton/cotton fabric both in warp and weft or terelyene/cotton fabric in warp and cotton fabric in weftThis type of belt will exhibit good flexibility, excellent trough-forming ability and is an economical solution for your conveying needs. APPLICATIONSBest suited for conveying products in short distance and suitable for but not limited to conveying of powder, granules and weak abrasive materials such assawdust, grain, coal and cements, etc.Operating temperature: 10°C-60°C BELT TYPESBelt types include normal, oil resistant, acid and alkali resistant, cold resistant and anti-static gradesTECHNICAL DATAStandard: In accordance to ISO/FDIS 14890:1990Performance at Overall ThicknessBelt length can be customized on request and the maximum length is no more than 300 m.Fabric TypePlyThickness(mm)Nominal Tensile Strengthat Overall Thickness(N/mm)LongitudinalElongationat Break(%)LongitudinalElongation atRated Stress(%)BeltWidth(mm)StandardBeltLength(M)2ply3ply4ply5ply6plyTerylene Cotton TC-701.0140210280350420≥10≤4300~1500200Cotton  CC-561.0112168224280336Performance of Cover Rubber (for General Applications)Note: The cover rubber performance for other belt types like oil resistant, acid and alkali resistant, cold resistant andanti-static belt, please refer to the corresponding belt introduction.Cover GradeTensile StrengthElongation at Break(%) ≥Abrasion Loss(mm³ ) ≤Change Rate of TensileStrength & Elongationafter Aging (%)(MPa) ≥(Kg/cm²) ≥Ordinary Applications (L)15.0150.0350200-25 ~ +25Abrasion Resistant (D)18.0180.0400100-25 ~ +25Extreme Tear Resistant (H)24.0240.0450120-25 ~ +25When cover rubber thickness ranging from 0.8~1.60mm, it allows 15% tolerance of tensile strength.Aging Test: 70ºC×168h.Adhesion-Ply to PlyItemCanvas Ply toCanvas PlyCover to Canvas PlyCover Thickness 0.8-1.5mmCover Thickness >1.5mmAverage Value of Samples (N/mm) ≥3.02.12.7Minimum Value of Samples (N/mm) ≥2.71.62.2The peak value of all samples are less than 20N/mm. We also have patten conveyor belt.Type of Pattern:1) Chevron conveyor belt (Raised & Sunk herringbone)2) Round pit conveyor belt3) Diamond conveyor beltThe workshop of our beltThe other products of our conveyor parts:Could you please send me inquiry for details?   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
