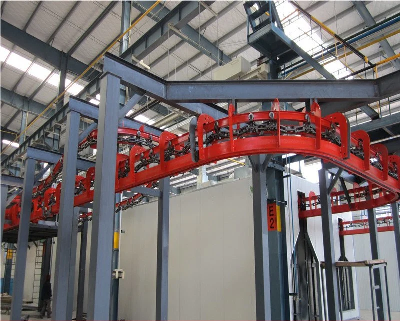

Overhead Conveyor System in Coating Line

Overhead Conveyor System in Coating LineTechnical advantages:1. Flexible layout2. Small floor space3. Continuous and adjustable runningSummary:Overhead chain conveyor is the device which could overhead continuously carry the materials, the materials are fixed in appropriative boxes and holder and run along the pre-selected track. The conveyor line could upslope and downslope and turn a corner. It is widely used in the fields of machinery,automobile,food and chemical etc.  Main parts:1Overhead trackFormed a closed loop2Hauling chainConnected with each carriage3CarriageRunning along the closed loop4HangerLoad the workpieces5Redirection deviceHelp the workpieces change the direction6Actuating deviceProvide the power for running7Tensioning deviceProvide the enough tension8Safety deviceAvoid the potential risk caused by the misoperation and the breakdown  Technical specification:1Width of the line body250-900mm, as per the client.2Height of the line body500-1000mm3Length of the line body30-40m, conveying speed:2-20m/min4Type of chainThe speeds of chain and delivery roller are the same, but the speed of double pitch delivery roller, chain and delivery roller are different.5Type of tooling plateSteel plate, wood plate6Material of frameCarbon steel, aluminum profile7ElectricitySet up with conductive casters in the line body and conducting bar in the tooling plate.8Power supplySingle-phase 220V,Three-phase 380V 50HZProduct packaging:  Product Catalog:*Coating linesAutomatic/Manual/Semi powder coating line; Automatic/Manual/Semi paint spraying line; Electrophoretic painting line; Electrostatic powder coating/painting line etc.*Coating boothsPowder coating booth with large cyclone; Powder coating booth with small cyclone; Powder coating booth with recycling system; Painting booth; Water curtain painting booth, Sand blasting booth; Shot blasting booth etc.*Conveying systemsChain conveyor, Belt conveyor, Plate conveyor, Overhead conveyor and Power and free conveyor are all available according to the clients' requirements.*Coating ovensDrying oven and curing oven with various heating energy, like gas, electricity, diesel etc.*Coating machinesElectrostatic powder coating gun (OURS-808 and OURS-2014); Airless paint sprayer etc.Our service:*Free design:Free drawing designed by our engineer according to the actual requirements of clients.*High quality and competitive price:We promise to provide high quality equipment with best price.*Customized equipment:Customized equipment completely based on the drawing.*Overseas installation and commissioning:On-site installation and commissioning of coating lines.*WarrantyAt least one year after the acceptance of the client.If you are interested in our products, pls don't hesitate to contact us, we will give you the most professional reply and support within a short time./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
