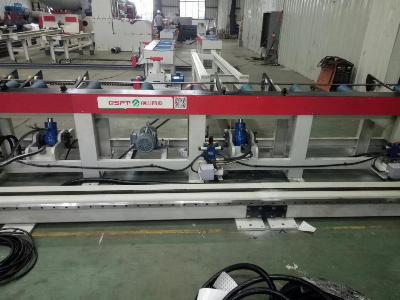

Pipe/Tube Conveyor System Pipeline Transport

Technical ParametersPipe Diameter Applicable: DN400/DN600/DN800/DN1000Conveying Length: Feed in end: ≥1,000MM; Feed out end: ≥500MMLine Length: 7.5M at feed in end and 7.5M at feed out end (or depending on customers' requirements)Line Height: 800MMMaterial of the Roller Bench: Carbon steel with blue treated surface (coated with rubber if necessary)Conveying Speed: 2~20M/MinSpeed Adjustment: Manual/VF stepless speed adjustmentControl System: Manual(A1)/PLC control, shared with the pipe cutting length-measuring system (or depending on the situation) (A2)   FeaturesThe pipe conveying system for cutting band saw machine conveys the pipe automatically or manually when the band saw cuts it and the pipe can be removed from the machine with a turnover mechanism if necessary.It increases the automatization level in the pipe fabricating plant and decreases the hazards during hoisting.Specially designed conveying system for Pipe Cutting Band Saw Machine; V type polyurethane rollers same as the internal conveying of the pipe cutting band saw machine to ensure the alignment of pipes in all directions; VF stepless speed control, manual control on console (wireless remote control for option)./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
