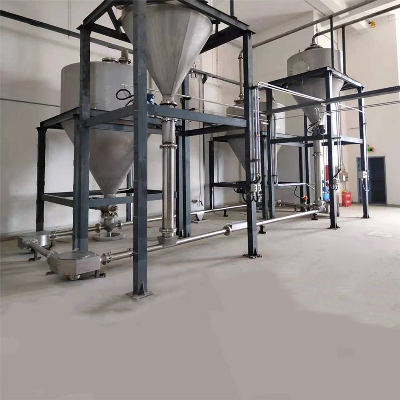

Continuous Pipe Chain Vertical/ Horizontal Conveyor

Production Details The pipe chain conveyor, also known as a pipe chain machine, pipe conveyor, or chain conveyor, is an ideal equipment for continuous transportation of powder, small particles, and small pieces of loose materials. It can be combined horizontally, obliquely, and vertically for transportation. In a closed pipeline, the chain is used as a transmission component to drive the movement of the material pipeline.When transported horizontally, the material particles are pushed by the chain in the direction of movement. When the internal friction force between the material layers is greater than the external friction force between the material and the pipe wall, the material moves forward with the chain, forming a stable material flow;When vertically conveying, the material particles inside the pipe are pushed upwards by the chain, and the lower feeding prevents the upper material from sliding, resulting in lateral pressure, which enhances the internal friction force of the material.When the internal friction force between the materials is greater than the external friction force between the material and the inner wall of the pipe and the material's self weight, the material is transported upwards with the chain, forming a continuous material flow.Technical Parameters  ModelPower KWlinear velocity M/SSpeed R/minConveying capacity M³/HMAXIMUM TORQUE N·MMaximum tensile force  NNOTICEPC-804.00.3020.73.918101300Maximum pulling force at low speed up to 1.5 tons0.3624.94.7150410900.4027..65.21357980PC-1005.50.3017.56.029431800Low speed maximum pulling force up to 2 tons0.3621.07.2245215000.4023.48.022001350PC-1507.50.3013.413.752402450Low speed maximum pulling force up to 3 tons0.3616.016.4439020500.4017.918.239231840PC-20011.00.3011.427.490343590Low speed maximum pulling force up to 4 tons0.3613.732.9751829900.4015.236.567762700Units in the pipeline chain conveyor systemProduct FeaturesAdvantages of Pipe Chain ConveyorsConvenient maintenance. The conveyor is mainly driven by chains to drive the movement of materials, with a simple structure and convenient maintenance. Regular observation and maintenance of the chains and unit lubrication are only necessary to maintain the long-term stable operation of the equipment.Refuse to raise dust. The pipe chain conveyor is completely enclosed, and its dust proof design allows it to handle and contain dust, odors, toxic, and even harmful substancesApplication Area Pipeline chain conveying system:1. Plastic industry: PVC, PP, PE powder, ABS, PC, PP, PE particles.2. Fine Chemicals: Dyes, pigments, coatings, carbon black, titanium pigments, iron oxide, ceramic powder, heavy calcium carbonate, fine particle calcium carbonate, bentonite, molecular sieve, porcelain clay, silicon powder, activated carbon.3. Mining: urea, ammonium chloride, Ammonium bicarbonate, soda powder, solid pesticide, tungsten powder, fish oil, copper powder, coal powder, block phosphate, bauxite, etc.4. Building materials: cement, clay, yellow sand, quartz sand, clay powder, silicon, lime powder, dolomite powder, sawdust, glass fiber, silica, painting powder, etc.5. Food industry: flour, starch, grains, milk powder, food additives, etc.Customer Reference  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
