Corrugated Sidewall Conveyor Belting Made in China

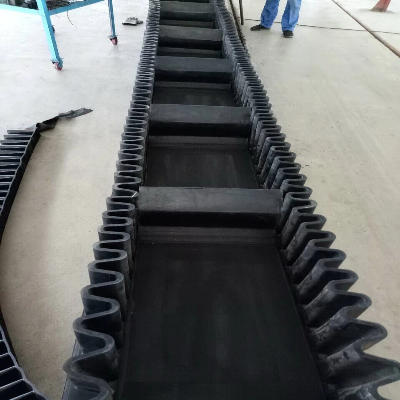

                      corrugated sidewall conveyor beltSidewall conveyor belt is designed with two corrugated side walls molded to cross rigid base belt. they are cross rigid base making use of specially designed fabrics which provides maximum stability in the transverse direction, ultimately, resulting in for better return side support. SIDE Wall Belts are designed for Zero spillage and to felicitate faster and bulk material handling, 4 times compared to standard conveyor belting in terms of transporting capacity.  Feature:1) Increase the transporting capacity to 4 times compared to standard conveyor belts.2) Save installation space due to the possibility of increasing the angle of inclination up to 90°.3) Protect the material from friction by solid cleats mounted on the belt.Corrugated sidewall conveyor belt is one of the most effective ways of elevating materials in a confined Space , the economy is achieved by single belt operation , wide range material can be handled, less space requirement, no transfer point, low maintenance and big capacity. Corrugated sidewall belt can be designed into a set of complete transportation system according to application.Application:Harbor, metallurgy, mining, electricity, coal, foundries, construction, food, cement works, fertilizer, etc. Carcass: the carcass of the base belt can be CC, NN and EP fabric Advantages:1. low maintenance cost2. Large transport capacity, and it can avoid material spilling effetely                                        3. The belt can facilitate switching from horizontal to inclined conveying from inclined to horizontal conveying                         It saves a lot space as it allows material conveying at 0°-90°Low power requirements and smooth runningWide range of material handlingPractically Zero Spillage  Type S:Standard constructionAvailable in heights from 40mm to 120mmType SR:Standard constructionComes with diagonal fabric reinforcementType XHDSR:Heavy duty special designsComprising fabric reinforcement as standardAvailable in heights from 300mm to 630mmType HDSR:Heavy duty constructionComprising fabric reinforcement as standardAvailable in heights from 120mm to 300mmFabric reinforcement of diagonal type that ensure maximum flexibilityOffered solution offering high vertical stabilityTe solutions can be offered without fabric reinforcement to meet special order needsThe cleat is made of enforced fabric, solid, anti-shock to avoid distortion.cleat types T, TS, C, TC and TCS."TS" and "TCS" cleat are normally used for abrasion condition"T" and "TS" cleat are normally used up to 40 degree"TC" and "TCS" are normally used from 40 degree to 90(c) the level of :2-10 (d) plastic cover: Face :1.5-8 mm non-Face: 0 mm-4.5mmTechnical Data for Sidewall Conveyor Belt  Base Belt Width B(mm)Sidewall Height H(mm)Cleat Height H1(mm)Bf(mm)Br(mm)R(mm)300403525180356055501204080754006055501806080751009050080755025075100901201106501009050350100 120110 16014075300 8001201105046012016014075410200180100016014075550150200180240220120016014075690180200180240220300280105630140020018075830210240220300280105770400360160020018075970240240220300280105910400360180024022075111027030028010510504003605004601251010Company Information:   Qingdao Bothwin Co., Ltd is an outstanding manufacturer of many kinds of rubber and PVC products. It was established in the year 1997 and had been in the business of rubber conveyor belt,rubber sheet,rubber mat,rubber extrusion,PVC strip curtain,PVC soft sheet etc.In addition,our quality system has passed the certificate of ISO,DIN,Reach,CE,PONY etc,which are further testimony to the quality of our working and products.Qingdao Bothwin Co., Ltd is totally committed towards offering excellent quality products and attaining total customer satisfaction. " Quality first,then quantity" is our factory's spirit, adhere to customer needs is marketed withthe needs of the business philosophy. A long lasting relationship with our esteemed clients is the live proof of the unmatched quality of products and services rendered by us.Welcome to contact Qingdao Bothwin Co., Ltd for more rubber and PVC products information!Factory :TECHNICALOther rubber belt typesFire Resistant BeltsChemical Resistant Conveyor BeltsCold Resistant BeltsHeat resistant beltSidewall BeltingBucket ElevatorChevron Conveyor BeltsRough Top Conveyor BeltsFabricated Conveyor BeltsSteel Cord Conveyor BeltsPipe Conveyor Beltspackaging:Packaging --- Usually 200-300m per roll for rubber EP conveyor belts --- one 40'' container can load 3-4 rolls at most--- Cassette package is available for abrasion resistant conveyor belts --- One 20" container can load 6--8 rolls DIN-Y conveyor belts --- One 40" container can load 8--10 rolls stone crusher conveyor belts --- Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole. --- Outer is packed with one ply water-proof PP fabric --- Customized package is available for rubber conveyor beltingOur Services 1. We are the profes
