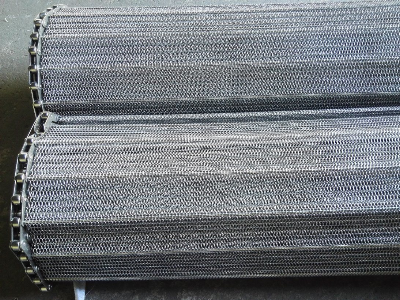

Wire Conveyor Belt for Food Freezer Conveyor

wire conveyor belt  is a highly usable conveyor belt. The belt has been designed for a great many applications, constructions and process conditions. The belt is eminently suitable for cooling or freezing products such as snacks, bread, pastry, vegetables, potatoes, fish and meat, as well as for blanching vegetables or proofing dough. The belt is used in radius systems, spiral towers as well as in curved and straight conveyors. The RA radius belt is constructed of cross rods with chain links on both sides and, in most cases, is provided with balanced weaved spiral mesh for product support. The thickness of the spiral wire and the spiral pitch can be chosen at will and allow the belt to give optimal product support. The belt can also be provided with reinforcing links, extra plate links for product conduction, or with flights. The belt can be made in every width between 350 and 1,500 millimetres. Belts with widths smaller than 350 mm, or greater than 1,500 millimetres and belts with unilateral spiral wire are made on demand. The Standard RA radius belt has many different versions to optimise your choice and is available in: 1different pitches:                       19,05 mm (3/4") and  27,4 mm (1") 2 different strengths:                   - normal (2 mm) chain link                      type: RA - NB - heavy duty (3 mm) chain link                type:   RA -VB  - heavy duty chain link with double  reinforcing plate links                            type:   RA -VP -      different ratios between the belt width and the rotating radius:  rotating radius  = 1,7 x belt width  or  rotating radius  = 2,2 x belt width                                          size materialwire diameter(mm)rod dia(mm)spiral diameter(mm)mesh size (mm)chain pitch (mm)price($/m)length230m xwidh406mmss3041.558.58.5*27.4327.4361.5$/mlength230m xwidh406mmss3161.558.58.5*27.4327.4372.5$/mlength230m xwidh406mmss316L1.558.58.5*27.4327.4374$/M/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
