Greatwall Mesh Flat Wire Stainless Steel Rod Chain Conveyor Belt

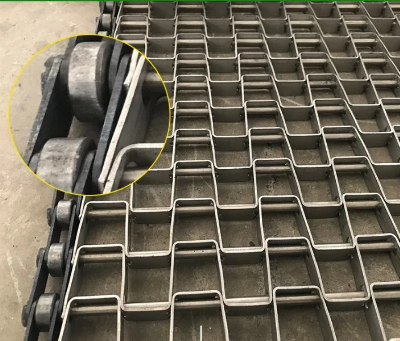

Product DescriptionFlat wire conveyor belt, constructed of cross rods and flat metal strips, are made out of thousands of metal "U" shapes that are riveted together. They are best for situations that require a solid, flat surface that promotes maximum air circulation. Excellent fluid drainage as well as ease of cleaning. Meanwhile, they are easy to maintain just replacing the section that is damaged or worn down. They are used in some of the following applications:  food processing, canning, baking,  freezing, agricultural applications, as well as Parts washing, drying, cleaning, painting, transferring; also used as matting and drag mats.   Detailed Photos Product ParametersDetails:Material: high carbon steel, low carbon galvanized steel, stainless steel 201, 304, 316, etc.Open size: 1" × 1", 1/2" × 1", 1/2" × 1/2".Belt width: 50mm to 3500mm.Belt speed: from less than 1 m/min to 25 m/min.Temperature range: -30°C to 400°C.Accessories: flight clips, lane dividers, edge guards or pin up attachments, etc.  StylesTypesMesh sizeBelt widthCross rod diameterFlat strip (Height × Thickness)Tension (max)Approx. weightStandard duty & clinched edgeCG-C11" × 1"4.5" to 240"0.105"3/8" × .046"480 lbs./ft1.85 lbs./square feetCG-C2½" × 1"4.125" to 240"0.105"3/8" × .046"660 lbs./ft2.20 lbs./square feetCG-C3½" × 1"4.125" to 240"0.105"3/8" × .046"660 lbs./ft2.50 lbs./square feetCG-C4¾" × 1"4.5" to 240"0.12"3/8" × .046"550 lbs./ft2.00 lbs./square feetStandard duty & welded edgeCG-W11" × 1"3" to 240"0.105"3/8" × .046"480 lbs./ft1.85 lbs./square feetCG-W2½" × 1"3.25" to 240"0.105"3/8" × .046"660 lbs./ft2.20 lbs./square feetCG-W3½" × ½"3" to 240"0.105"3/8" × .046"750 lbs./ft3.25 lbs./square feetCG-W4½" × 1"3.25" to 240"0.12"3/8" × .046"660 lbs./ft2.50 lbs./square feetHeavy duty & clinched edgeCG-C11" × 1"10" to 192"0.192"1/2" × .062"1350 lbs./ft3.55 lbs./square feetCG-C2½" × 1"10" to 192"0.192"1/2" × .062"1750 lbs./ft3.55 lbs./square feetPackaging & ShippingApplication Related Products  Company ProfileAnping Chongguan Wire Mesh Products Co., Ltd. Is a production-oriented enterprise, located in Anping, Hebei, China. Our welded mesh factory was built in 1998. Through many years of researching, technical improvement and continual expansion of production capacity, our welded mesh factory upgraded to Anping Chongguan Wire Mesh Products Co., Limited in year of 2014.Our main products are welded mesh, wire mesh, fence, steel grating, wire mesh, galvanized wire, filter material, wire mesh conveyor belt, gabion, cages, perforated metal sheet and expanded metal sheet.Quality and reputation, which is the base of long term cooperation, it is emphasized by Chongguan, so that we earned very good reputation among our customers. Through many years of producing and exporting mesh products, we know different process make products different characters. According to customers special request, we can supply the best and suitable products by our 100% endeavor. We sincerely hope to establish a good relationship with all friends based on mutual benefit. Please focus on us, and believe we can do better.Certifications/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
