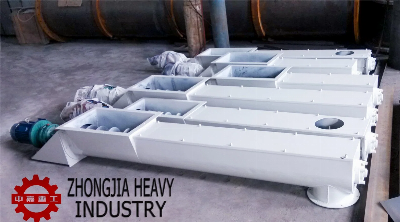

Hot Sale Mineral Conveying Equipment Screw Conveyor

Product DescriptionHot Sale Mineral Conveying Equipment LS200 Screw ConveyorScrew conveyor is a kind of conveying equipment widely used in mineral, feed, grain and oil and construction industries. From the perspective of conveying material displacement direction, screw conveyor is divided into horizontal screw conveyor and Q inclined screw conveyor, which are mainly used for horizontal conveying and vertical lifting of various loose materials such as powder, granular and small pieces.1. Large carrying capacity, safe and reliable.2. Strong adaptability, easy installation and maintenance, and long service life.3. The entire machine has small size, high speed, and ensures fast and uniform transportation.4. The discharge end is equipped with a cleaning device, which has low noise and strong adaptability. The position of the inlet and outlet is flexible.5. Good sealing performance, the shell is made of seamless steel pipes, and the ends are connected to each other by flanges, resulting in good rigidity.TypeSpeedRPM(r/min)Capacity(m3/h)Distance(m)Angle(°)Power(kw)Weight (kg)10m±1mLs16050~1124~8≤18≤20° 1.132035Ls20050~1007~14≤201.541049Ls25040~9013~24≤302.253067Ls31540~8016~34≤404.068084Ls40036~7134~64≤40111100111Ls50032~6352~100≤40221240160Gx20025~5080~145≤401.152047Gx25020~40110~208≤402.271065Gx30016~32150~300≤403.0105093Gx40013~25200~388≤405.51490128Screw conveyor uses rotating screws to move the conveyed material along a fixed casing for conveying work. The head and tail bearings are moved outside the casing, and the suspension bearings are equipped with sliding bearings and dustproof sealing devices. The bearing pads are generally made of powder metallurgy, and the cement is transported using felt bearing pads. The suspension shaft and screw shaft are connected by sliding blocks.Company ProfileOur company is a professional manufacturer of complete sets of mineral processing machinery, cement, chemical, building materials and other equipment, with a production history of more than 40 years. Its main products are: Jaw crusher, Hammer crusher, Roller crusher, Impact Crusher, Ball Mill, Rod Mill, Rotary Kiln, Stone Production Line, Sand Production Line, Sand Making Machinery, Mobile Crushing Station, Organic Fertilizer production line, magnetic separator, jig machine, slime dryer, sludge dryer, limestone ash machine, dryer, cooler, pelletizing machine, vibrating screen, automatic sand return spiral classification Machines, high-efficiency and energy-saving flotation machines, mining mixing tanks, feeders, filters, thickeners, lifting conveyors, screw conveyors and other mechanical equipment./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
