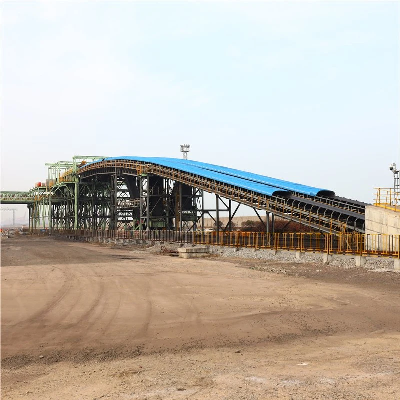

Overland Belt Conveyor Used Metallurgical Industry

Our coal/mine transportation belt conveyor system project overview:The wharf for belt conveyor and unloading trolley system application of East Coal South shift project in Shijiu port area, Rizhao port is located in the south 5 × 3-7 × 3 berths of the eastern coastline of the three-port pool in the South operation area of Shijiu port area, Rizhao Port, and the storage yard is located in the east side of the coke yard in the middle of the South three jetties.The project plans to build 21 belt conveyors for coal unloading, stacking, transferring, reclaiming, and loading, including 7 transfer rooms, 3 transfer platforms, 6 head platforms and their auxiliary facilities, which will adopt the mode of combination of new construction and relocation.(1) the rated capacity of the unloading trolley (XL1, XL2) of the project is 3600t / h, and the maximum capacity is 4000t / h.(2) the belt conveyor system of the project includes two types: the rated capacity of the stacking line belt conveyor system is 3600t / h, the belt width is 1.8m, and the belt speed is 4.0m/s; the rated capacity of the loading line belt conveyor system is 6000t / h, the belt width is 2.2M, and the belt speed is 4.3m/s.1, Our Belt Conveyor Introduction:Our company is committed to the design, development, manufacturing, installation, and maintenance of bulk conveying system equipment, large process equipment, port handling machinery, and auxiliary equipment. Since 1986, over 30 years, relying on Rizhao port to provide designing, manufacturing, installation, and maintenance general contracting services for port equipment operation and maintenance, providing targeted solutions for customers, making the design more in line with the needs of the owner, accumulating rich experience in production, installation, operation, and maintenance of the continuous conveying system and material handling machinery, and maintaining a good partnership with a number of internationally renowned enterprises. The company's business areas cover ports, mining, cement, power, metallurgy, paper, and other industries. The main products are DTII type, DX type universal belt conveyor, DG type pipe belt conveyor, DD type air cushion belt conveyor, DY type mobile belt conveyor, DJ type corrugated belt conveyor and its components idler roller, frame, etc., stacker and reclaimer, high pole lamp, sweeping car, pulley, grab, wear-resistant lining, etc., the products are exported to Europe. , Australia, America, Southeast Asia, and other regions.General Technical Parameter     Belt speed (m/s)Belt width (mm)50065080010001200140016001800200022002400Conveying capacity (T/H)0.8069127198324              1.0087159248405593825          1.251081983105077421032          1.601392543976499511321          2.0017431849681111881652218627953470    2.50217397620101414862065273334944338    3.15    87112781872260234444403546668438289 4.00      162223773304437355916941869010526 4.50        26743718492062917808977611842 5.00        297141305466698986761086313158   5.60            6122782997171216614737     6.50              90831127714120171042, Our belt conveyor features:1. Large conveying capacity and longer conveying distance, up to 20km or longer2. Can conveyor various kinds of bulk material and itemized goods with a bulk density of 0.5~2.5t/m³3. Can adopt a combined conveying mode of the convexly curved segment, concave curved segment, or straight-line segment. 4. According to different transportation requests, it can be singly used or multiple combined using also can be used together with other equipment to organize a horizontal or declining conveying system. 5. It can be used between -25ºC~+40ºC working environment, the temperature of conveying material under 80ºC with high adaptability. 3, Belt conveyor Project Achiivement 2,Our conveyor components roller series: The SPD range of conveyor rollers includes both steel and HDPE carry and return rollers. Also available are rubber disc impact and return rollers. The rollers and frames are manufactured to different standards or designs according to your special working condition requirements with some innovative and maintenance-saving designs. Our rollers are fitted with quality deep ball ZZ C3 bearings for maximum life. Belt Widths of our SPD rollers range from 400-2000. Larger sizes are available on request.Roller lifespan could be assured 30,000 to 50,000 hours under normal working conditions and maintenance. 3,Other conveyor products series:5,Main  Product Processing and Facilities & Capabilities 6,Customers' Feedback of SPD Conveyor Idler7, Our Typical Customers :8, Company IntroductionABOUT US - Rizhao Port Shipbuilding & Machinery Industry Co., Ltd (RPIC)RPIC is a wholly-owned subsidiary of Shandong Port Equipment Group, is a large comprehensive state-owned enterprise combining industrial products research and manufacture, steel structure, and equipment producing, general contracting service for industrial system and ships & equipment building a
