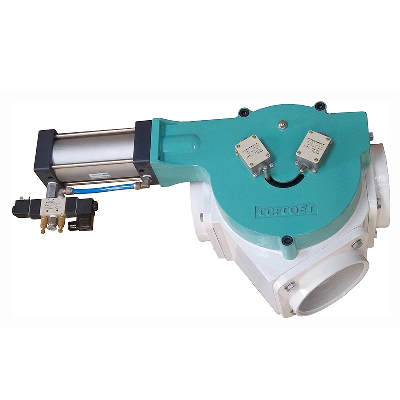

Two-Way Valve, Pneumatic Conveyor for Flour Mill Machine

THFX COCK Valve(Two-way Valve)THFX cock valve (two-way valve) is a pneumatic conveying system in the device for switching the direction of the material. It allows the pipe material change in the flow state transport direction without interrupting the gas supply and stop feeding the material to the two selected locations. If several valves combination of many materials can be sent to selected locations, the operation is very convenient to use. Change is widely used in flour, bran, starch, grain, feed, sugar, chemical products, plastics and other materials are vacuum conveying powder and low transport pipeline conveying direction, so that the material sent to the selected location.1.  All castings using lost wax casting metal film, body angle 60 °. Material: Body, spool with QT600-3 ductile iron, valve covers, flanges ZG25 steel, processed by the aging heat treatment, welding flange and the pipe is good, cylinder bearing non-magnetic aluminum castings; 2. To ensure the rotation of the spool in the valve body is not flexible and does not leak string, with bearings and seal rings triangle F4 cover, O-rings, two-way valve is in space and down, left and right, can be installed before use.SpecificationDN(mm)DuctbifurcationangleHeat Temperature(ºC)Body work pressure(kPa)CylinderSuctionPressure feedLow transport)Diameter/ Stroke(mm)Working Pressure(Mpa)THFX6.5x26550°60°Two anglesfor users tochoose1005010040050/1000.4-0.6THFX8x28050/100THFX10x210063/100THFX12x212580/125THFX15x2150100/125THFX18x2175100/125ABOUT AGS:Zhenjiang AGS Machinery Co., Ltd manufacture and export conveyor parts in China.Our Business:screw conveyor, chain conveyor, belt conveyor, bucket elevator, Roller mill, Purifier Bin Filter, spout pipe, sieve cleaner, chain ,all kind of machines and components for flour mill ,feed mill, rice mill , and other bulk material handling industry.Exported country:South Asia, South Africa, West Africa, South American and Russia and the Philippines.QC standard:All the products are tested before delivery according to relevant International Standard or customers' requirements.OEM service: Besides the international standard products, we can also design and manufacture new products according to drawings or requirements.Our purpose:With more than 20 years experience in the bulk material handling industry, we hope to become one-stop suppliers for all the different machines and componentsContact DetailsZhenjiang AGS Machinery Co., LtdNo.99, Chuqiao Rd,Technology District, Zhenjiang city, Jiangsu province, China /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
