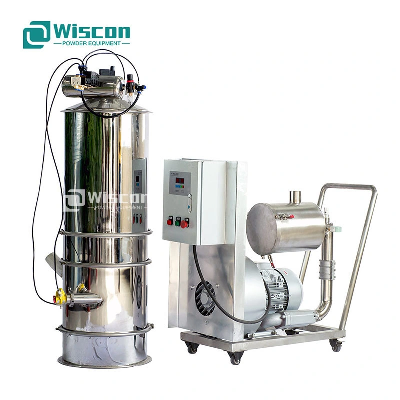

Weighting Hoppers Bin Industrial Pneumatic Air Vacuum Automatic Powder Conveyor

  Product DescriptionProduct DescriptionThe electrical vacuum conveyor is the dust-free feeder for powder and granule, electrical Vacuum conveyor can deliver materialsautomatically to hoppers, bagging machines, mixer blender, mill, vibratory screener, etc. to reduce the dust spills during materialscharging. It is widely used in pharmaceutical plants; food plants and any other plants require for clean and civilized production.Typical ApplicationThe equipment is used in working conditions with high sanitation or dust restrictions.Powder, granules, tablets, and capsules conveyingWorking PrincipleThe vacuum pump is powered by compressed air, which functions on the Venturi principle, and generates the vacuum. Materialsare sucked into the suction pipeline and form a gas-and-materials stream. The stream goes to the hopper of the vacuum feederthrough the pipeline. Meanwhile, the filter separates the materials from the intake air completely. When material falls into the hopper,the controller will cut off the vacuum generator automatically, then the hopper outlet valve will open automatically and materials fallinto the receiving vessel. When the vacuum generator starts again, this process is repeated and a new cycle starts. The suction timeand emptying times are normally controlled by a control system.Product ParametersModelMax. Capacity (kg/h)Power (kW)Air Consumption (NL/min)Overall Size(mm)ZKS-1200~4001.58ø290x1040ZKS-2300~6002.210ø290x1040ZKS-3400~1200310ø290x1010ZKS-4800~25005.512ø420x1360ZKS-61000~32005.512ø420*1360ZKS-72000~60007.517ø600*1630Product DetailsFeatures and Benefits1. Airtight conveying, no dust leakage, no cross-contamination conveyor, 2. Reduce environmental and personnel pollution by conveyed materials3. Hygienic design is practically suited for the food and pharmacy industry.4. Modular design, Disassembly, and cleaning can be carried out quickly.5. Quick filter change without any tools or dismantling of pipes.6. Flexible conveyor, not limited by the site installation distance.Optional Features1 Various filters for different filter materials andfiltration accuracy2. Optional feed adaptor for automatic product intake.3. Stainless steel pipelines and reinforced tubes for choice.4. ATEX compliant explosion-proof function is available.5. Inlet and outlet ports can be tailored to fit into the production line.6. FDA approved rubber and plastic materials for sanitary standards Build Materials and Finish1. SS304 Stainless steel with contact parts for standard design.2. SS306L stainless steel and Titanium for highly corrosion-resistant products.Why usWuxi Wiscon mechanical and Electrical Equipment Co., Ltd. is an integrated company specializing in powder production for the food,pharmaceutical, chemical, and biological industries since 2016.Main products categories cover the following equipment:a. Drying Equipment: rotary atomizer spray dryer, pressure nozzle spray dryer, tray drying oven.b. Powder Mixer: Conical Screw mixer, Ribbon mixer, Ploughshare Mixer, V-shaped mixer, and Double cone mixer for bulk materials.c. Vibration Screener: Rotary vibratory Screener, Tumbler Screening Machine, and Centrifugal shifter for fine powder separation.d. Grinding Machine: Universal Mill, Air Classified Mill for food and Pharmaceutical.e. Granulating Equipment: High Shear Mixer Granulator and Fluid Bed Granulatorf. Vacuum conveyor: Pneumatic vacuum Feeder for BIC, Bagging machine, powder mixer, sieve, etc.FAQQuestionnaire for pneumatic vacuum conveyorIn order to quote you the right pneumatic vacuum conveyor price, Please specify as much information as possible- What are the materials to be conveyed- Is the materials friable or sensitive to moisture?- What is the desired transporting capacity- What is the conveying distance?- What is the particle size and bulk density of conveyed materials?/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
