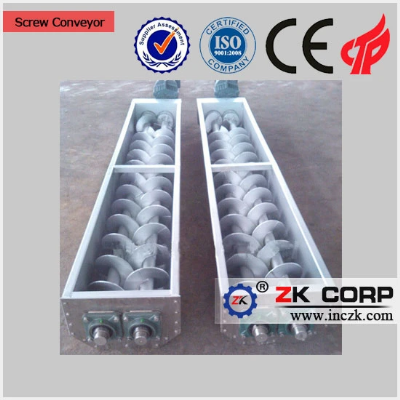

Screw Conveyor Machine Screw Conveyor Price Spiral Cement Conveyor

Introduction:Screw Conveyor adoptes overseas' advanced technology at powdery and high temperaturematerial transportation equipments and is a high airproof equipment. For the bearing supportdoes not touch the material, it is specially suit the transport of powdery and high temperaturematerial.Features:1.Stable running, low noise and long service life;2.Flexible for multi-point feeding and discharging;3. Equipped with an alarming device for material blockage;4. Devices for speed loss and chain breakage protection are optional;5. Widely used in port, dock, grain depot and the malt, flour, brewery, feed and chemical industries for horizontal bulk material conveying.Specifications: ModelScrew Dia.(mm)Screw Spacing(mm)Rotational Speed(r/min)Conveying Capacity(m³/h)Conveying Distance(m)LS20020020050~907~122~15LS25025020045~9010~202~20LS30030020040~8015~302~20LS40040030035~7025~552~25LS50050040035~6545~902~25 Structure:LS series screw conveyor is mainly composed by screw, chute, hanging bearings, driver, supports, inlet and outlet. The main structural characteristics of each part are: 1.The head and tail bearing are arranged outside the chute. It avoids dust entering the bearing and convenient to install and maintain; 2.The optimized screw solved the material blocking problem at the outlet; 3.The screw shaft use reducing structure. It increases the volume at hanging bearings to reduce the wearing by the friction between bearing and material; 4.The screw shaft and hanging bearing connection applies embedded structure. There's no axial movement during mount and dismount. Thus it is convenience to maintain and repair; 5.The hanging bearing structure is compact and the dimension of axial and radial dimensions is small. It can avoid the material stuck and blocking; 6.The hanging bearing has improved sealing and lubricating structure. It help the bearing protection and lubrication effectively and can significantly increase its service life; 7.The hanging bearing is fixed at screw shaft connections of each segment. It can ensure the concentricity of the screw shaft while increasing its overall stiffness.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
