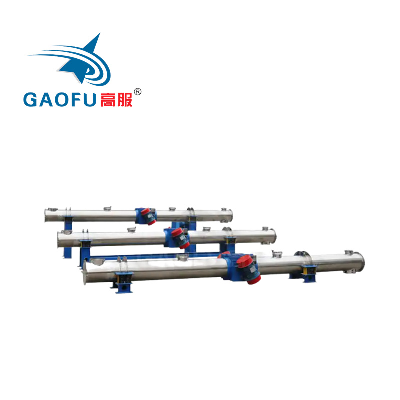

Stainless Steel Screw Conveyor Flour Factory Electric Intelligence Feeding Machine

Product DescriptionLX -type spiral conveyorWorking principleLX-type screw conveyor is to use the rotating screw to push the conveyed material along the fixed casing to carry out the conveying work. The head and tail bearings are moved to the outside of the casing. Generally, powder metallurgy is used, felt bearing pad is used for conveying cement, and the suspension shaft and screw shaft are connected by sliders.StructureStructural features of LX type screw conveyor, a screw conveyor usually consists of three parts: body, entry and exit device, and drive device. The body consists of the first section, the middle section and the last section. The thrust bearing is installed in the first section to bear the axial force, and the screw shaft is supported by bearings in the middle section and the tail section. In addition, an axially movable radial bearing is installed in the tail section to compensate for the error of the length of the screw shaft. and adapt to temperature changes. The screw shafts are connected by flanges, which improves the interchangeability of the connecting shafts and facilitates maintenance.Product ParametersTypeDeliveryAngleDeliveryDistance (m)DeliveryVolume(t/h)Shell PipeDiameter (mm)Matchingpower (kw)LX2190---45°4-15152195.5-15LX2730---45°4-15302737.5-18.5LX3230---45°4-156032315-30Scope of application:Building materials industry, metallurgical industry, chemical industry, electric power industry, coal, charcoal industry, machinery industry, light industry, grain industry and food industry, etc.Applied materials:Sugar powder, starch, salt, soybean milk, soy sauce, fruit juice, tea, snack food, quick-frozen food, condiment, protein, food additive, industrial medicine, traditional Chinese medicine powder, granular pill, micropill, resin, coating, aluminum powder , lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic material, grinding powder, refractory material, quartz sand, waste oil, waste water, dyeing and finishing waste water, papermaking, additives, Activated carbon, etc.Packaging & ShippingRecommended FeaturedCertificationsCompany ProfileXinxiang Gaofu Machinery Co., Ltd. specializes in manufacturing vibration screens and vibrating sieves. To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers. Thanks to production equipment, strong technical capabilities, improved detection means and strict managing system, we have enjoyed good reputation. our company has attained ISO9001:2000 certification and CE Certification. Our products sell well throughout China and are exported to North America, West Europe, Southeast Asia and other countries and regions. Do you want to improve your product quality? Do you want your products to become more competitive? Choosing Xinxiang Gaofu Machinery Co., Ltd.! We will be your friend in the way to success! And you will create a shiny future in 2017! Please visit our website: www.gaoful.com. Our tenet: "Honest Service, the Highest Quality".To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.FAQ1. who are we?We are based in Henan, China, start from 2000,sell to Southeast Asia(40.00%),Domestic Market(27.00%),South America(10.00%),Eastern Europe(8.00%),Oceania(3.00%),North America(2.00%),Western Europe(2.00%),Africa(2.00%),South Asia(1.00%),Eastern Asia(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Mid East(1.00%). There are total about 301-500 people in our office. 2. how can we guarantee quality?Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us?Vibrating Screen Equipment, Crusher, Conveying Equipment, Mixer, Food Feeding And Screening System 4. why should you buy from us not from other suppliers?Gaofu company founded in 1982, 20 years screening experience, the company covers an area of 50800 square meters.we posses the independent management right of importing and exporting, our products are spread all over the country, sold in faraway market area 5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA; Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese Contact UsTell me the following questions, Then I can send you accurate quotation soon, including additional discount!Your email addressand telephone will not be shared or published!The proper selection of the vibrating screen depends on the material, mesh size,output required, method of input,abrasiveness of the material etc: 1. Screening product : _____2. Moisture:_____%3. Capacity:________kg/ hour4. Screen layer:_______5. Screen mesh size:______ mesh . ______ mesh. ______ mesh6. Voltage:______V,Frequency:______HZ, 3 phase7. SS304/316L stainless steel or Q235A carbon steel?/* January 22, 2024 19:0
