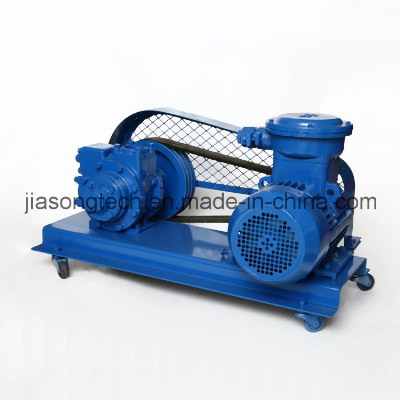

Movable V-Belt Drive Fuel Rotary Vane Pump

Main Features YB series self-priming rotary vane pump is with by-pass valve built-in. The pump uses a rotor with sliding vanes to drive the liquid transfer. The material of construction is nodular cast iron with self-lubricating vanes. Due to its superior performance, the pump can handle viscous and volatile liquid and require less horsepower than other equivalent pumps. The pump has its obvious advantage in the transmission of high flow at low revolution. Application Oil tank truck Fleet refueling. Lube oil Aviation refuelers Transmission of petrochemicals, gasoline, diesel, biofuel, solvent, etc. Installation With cardan shaft or hydraulic motor, the pump can be installed on oil tank trucks. And also it can be installed on metal baseplates with motor or diesel engine, using for high flow fuel dispensers and floating fuel equipments which are compose of pumps and flowmeters. Equipped with Teflon seals, the pump can also transfer a wide variety of solvent in the petrochemical industry. ModelSize/Flow Rate/Speed650 RPM600RPM550 RPM500 RPM450 RPM400 RPMG/minL/minG/minL/minG/minL/minG/minL/minG/minL/minG/minL/minYB-5050mm/2''803007227064240562104818040150YB-6565mm/2.5''1325001234651144301033909335082310YB-8080mm/3''2651000243920222840200760180680160600YB-100100mm/4''      5051900  4051530  Performance Data ModelYB-50YB-65YB-80YB-100Rated Speed640RPM640RPM640RPM640RPMPowerHP3.05.01025KW2.247.518.5/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
