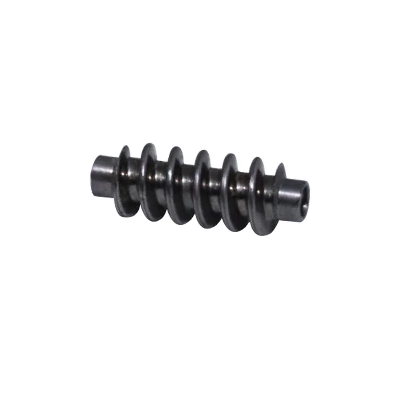

CNC Machined Parts Precision Turned Parts Carbon / Alloy Steel Worm Shaft

It Is Processed By The Star Dual-Spindle CNC Centering Machine. 90 °Tungsten-Carbide Center Drill For Centering, Tungsten-Carbide Bit To Drill, Roughing Cutter With 55 °R0.4 Corner For Processing Outer Diameter, Rear Sweep Insert With R0.4 Corner For Roughing Outer Diameter, Cylindrical Cutter With 55°R0.2 Corner For Finishing Outer Diameter, Rear Sweep Insert With R0.2 Corner For Finishing Small Outer Diameter, Thread Cutter For Processing Thread, Cylindrical Cutter With 55°R0.2 Corner For Deburrring, Turning Tool With R0.2 Corner For Deburring. We Remove The Burr With The Thread Cutter, Process The Inner Hole With The Reamer, For The Secondary Shaft, We Finish The End Face With The 55° R0.2 Corner Cylindrical Cutter.Bore Accuracy ±5μm, To Ensure The Tolerance Of The Bore Can Be Stable Production Of Large Quantities, Similar Models Are Also Available In Brass. Worm Drive Is Composed Of Worm And Worm Gear, Which Is Used To Transmit The Motion And Power Between Staggered Shafts. Generally, The Staggered Angle Of The Two Shafts Is 90 °. In General Worm Drive, The Worm Is The Driving Part. From The Appearance, The Worm Is Similar To The Bolt, While The Worm Gear Is Very Similar To The Helical Cylindrical Gear. When Working, The Worm Gear Teeth Slide And Roll Along The Spiral Surface Of The Worm. In Order To Improve The Contact Condition Of The Gear Teeth, The Worm Gear Is Made Into An Arc Shape Along The Tooth Width Direction, So That The Worm Part Is Wrapped. In This Way, The Worm Gear Is In Line Contact Rather Than Point Contact And Folded.Material: 45#Size: OD 15mm*Length 58mmWeight: 9gColor: Natural/Anti-Rust TreatmentQuotationAccording To customer's Drawings or Samples. IncludesSize, Material, Thickness, Processing Content And Required Technology, etc.)Tolerance  +/-0.005 - 0.01mm (Customizable) according to customer's requirement.Surface RoughnessRa0.2 - Ra3.2 (Customizable) according to customer's requirementMaterials AvailableAluminum, Copper, Brass, Stainless Steel, Titanium, Iron, Plastic, Acrylic, PE, PVC, ABS, POM, PTFE etc.Surface TreatmentPolishing, Surface Chamfering, Hardening and Tempering, Nickel plating, Chrome plating, zinc plating, Laser engraving, Sandblasting, Passivating, Clear Anodized, Color Anodized, Sandblast Anodized, Chemical Film, Brushing, etc.ProcessingCNC Turning, Milling, Drilling and Tapping, Surface Treatment, Laser Cutting, Stamping, Die Casting, Injection Molding,Hot/Cold forging, Heat treatment,  etc.Testing EquipmentCoordinate Measuring Machine (CMM) / Vernier Caliper/ / Automatic Height Gauge /Hardness Tester /Surface Roughness Teste/Run-out Instrument/Optical Projector, Micrometer/ Salt spray testing machineDrawing FormatsPRO/E, Auto CAD, Solid Works , UG, CAD / CAM / CAE, PDFOur Advantages1.) 24 hours online service & quickly quote and delivery.2.) 100% quality inspection (with Quality Inspection Report) before delivery. All our products are manufactured under ISO 9001:2015.3.) A strong, professional and reliable technical team with 20+ years of manufacturing experience.4.) We have stable supply chain partners, including raw material suppliers, bearing suppliers, forging plants, surface treatment plants, etc.5.) We can provide customized assembly services for those customers who have assembly needs.Available MaterialStainless Steel   SS201,SS301, SS303, SS304, SS316, SS416, etc.Steel   mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45#, etc.Brass   HPb63, HPb62, HPb61, HPb59, H59, H62, H68, H80, etc.Copper    C11000, C12000,C12000, C36000 etc.Aluminum    A380, AL2024, AL6061, Al6063, AL6082, AL7075, AL5052, etc.Iron    A36, 45#, 1213, 12L14, 1215 etc.Plastic    ABS, PC, PE, POM, Delrin, Nylon, PP, PEI, Peek etc.Others    Various types of Titanium alloy, Rubber, Bronze, etc.Available Surface TreatmentStainless SteelPolishing, Passivating, Sandblasting, Laser engraving, etc.SteelZinc plating, Oxide black, Nickel plating, Chrome plating, Carburized, Powder Coated, etc.Aluminum partsClear Anodized, Color Anodized, Sandblast Anodized, Chemical Film, Brushing, Polishing, etc.PlasticPlating gold(ABS), Painting, Brushing(Acylic), Laser engraving, etc.Our production:   Inspection toolings   Package:     Shipment:       /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
