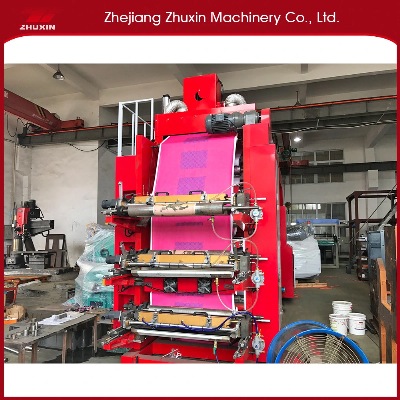

High Speed Yt-61000s Printing Machine with Effective  Air  Cooling  System

High Speed YT-61000S Printing Machine with effective air cooling systemPERFORMANCE AND CHARACTERISTICIntroduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper,etc.It is a kind of ideal printing equipment for producing paper packing bag for food,supermarket handbag, vest bag and clothes bag, etc.Application: paper, film, non-woven fabrics, woven tape and other packaging materials High Speed 6 Color 1000mm Printing MachinePrinting color : 6Max raw material width : 1000mmMax raw material length:200-1000mmMax printing width 960mmMax machine speezzd 145m/minMax machine speed  film 120m/min  , Paper:140m/min paper30g-300g .Accuracy of registrasion:vertical±0.15mm(manual) horizontal±0.15mm(manual) unwinder/ rewinder diameter: φ1000 mm unwinder/ rewinder paper tube/rubber tube: φ76 mm(inner diameter) printing way: mechanical adjustprinting plate lifting system:Automatic Hydraulic cylinder control printing roller.anilox roll: it adopts imported ceramic anilox rollertension systems:unwinding adopts automatic tension control system, 10 kg of magnetic powder.rewinder/unwinder:clamp material in air shaft,invert with analog quantity controlled,one 2.2kw motor equippedEPC way:automatic photoelectricDrying way: electric heatHEATING POWER: 19KW (DOULD HEATING SET IN PARTICULAR, it will dry FASTER)BLOWER: Drying oven of axial flow fan 45W X12sets,small fan of each group 40W X15setsMain motor: 3.7kw  main inverter:adjust the speed by inverterink motor:gear motor(0.6kw X4 )total power:40kwMachine size:L7000M * w2600M * h4000MBearing: Japan NSK one-way bearing ,ASNU aluminum alloy guide pulley for hard oxidation, dynamic balance, static balance treatment.PARTS INCLUDED IN THE MACHINE1.  MAIN MOTOR INVERTER CONTROL OUBANG BRAND TAIWAN    2.  INK MOTOR ONE SET OUBANG BRAND TAIWAN3. MAIN MACHINE INVERTER CONTROL ONE SET WEICHUANG BRAND    4. BLOWER FAN MADE IN JIANGSU5. ALUMIUN ROLLER BAIXIAO BRAND             6. CERAMIC ANILOX ROLLER FOUR PCS MADE IN SHANGHAI7. LOW VOLTAGE APPRATUS SCHNEIDER BRAND FRENCH              8. SWITCHES SCHNEIDER BRAND FRENCH9. CONTROL BOX ONE SET ZHUXIN MADE        10. MAIN MACHINE FRAME ONE GROUP ZHUXIN MADE11. WHOLE MACHINE IRON STEEL                 12. PHUMATIC PARTS KAILI BRAND13. AUTO TENSION RUIYU BRAND              14. PHOTOCELL EPC RUIYU BRAND15. close CHAMBER DOCTOR BALDE16. AUTO LOADING AND REWINDING BY HUDRAULIC SYSTEM 17. BACK TO BACK FRICTION WINDER CAN SUFFER WEIGHT 100KGS18. VIDEO STILL PICTURE KESAI BRAND TECHNICAL PARAMETERModel of MachineYT-6600SYT-6800SYT-61000SMax.Width of Substrate600mm800mm1000mmMax.Printing Width560mm760mm960mmPrinting Length200-1000mm200-1000mm200-1000mmMax.DiameterФ1000mmФ1000mmФ1000mmPrinting Speed60-80-100m/min60-80-100m/min60-80-100m/minPlate Thickness(include  double side adhesive tape)2.38mm2.38mm2.38mmInnner core size76mm=3inch76mm=3inch76mm=3inchRegister precision0.02mm0.02mm0.02mmPrinting cyliner control by hydraulic system, auto loading and rewinding control by hydraulicTotal Power28kw30kw32kwWeight of Machine4500kg5000kg5500kgOverall Dimensions5.8*2.3*2.8mm5.8*2.3*2.8mm5.8*2.3*2.8mmOPTIONAL  PARTS(CAN CHOOSE OR NO NEED, DIFFERENT COST)1.Auto tension       2.Air shaft     3.EPC      4.Doctor blade    5. Ink pump  6.Ceramic anilox roller   7.hydraulic cylinder controlling printing cylinder up and down8. pnumatic auto loading/ hydraulic auto loading 9. Top big dryer to have the highest speed Company ProfileWORKSHOPOUR CERTIFICATESTRADE EXHIBITIONSERVICEFAQ1.Q:Are you a factory or trading company ?A:We are a factory 2.Q:Where is your factory located ?How can I visit there ?A:Our factory is located in Ruian City , Zhejiang Province ,ChinaAbout 40 minutes by plane from shanghai (5 hours by train ) 3.Q:How is your after-sales service ?A:We have been in this printing machine line of business for more than many years ,We will send our professional engineer to install and test machine .So our after-sales service is always reliable. 4.Q:If your machines can print ?A :Our machines is multifunction , do roll to roll printing , such as paper, plastic film , woven bag , nonwoven .Surely , you can offer your products, Let us confirm it .We will suggest you the best project. 5 .Q:How does your factory do regarding the quality control ?A:We are the technical factory, we put more time on the quality control.Question: Are you Manufacture or Trading Company?   Answer:We are printing machines manufacturer nearly 10years, we had established our own trading company to expand our foreign market business, and provided our customer better service.Question: Where is your factory located? How can I visit there?  Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you. 6.Q: How does your factory do regarding quality control?Answer: Most our machine mechanical parts are processed by o
