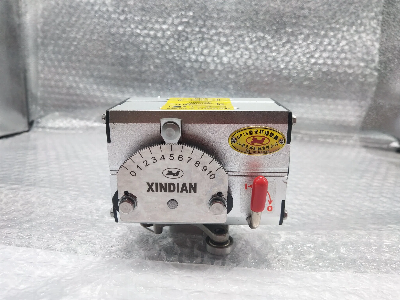

Rolling Ring Linear Drive System Xindian15A Traverse Unit Drive Unit

                   Rolling Ring Linear Drive System XINDIAN15A Traverse Unit Drive UnitProduct DescriptionDescription:1.Screw eye spacing: 36*332.M5 Host size 99*53*633.shaft head 15mm4.Maximum pitch 115.Thrust 110NRolling Ring Drive Applications: This rolling ring drive is ideal for a wide range of applications that require high precision and accuracy in linear movement. Some examples include:Industrial automation systemsRobotics and manufacturing systemsCNC machinesPackaging machineryTextile machineryPrinting pressesMedical equipmentA Series :Rolling ring drives Type A Series just have one Rolling Ring linear drive , which are divided into eight types according to the diameter of the shafts. Our product are widely used in wire,steel wire,electrical wire, cable, textile industry etc.Product Parameters The Parameter List(Rolling Ring Drives) Model No:Linear Pitchmm/rAxial ThrustkgWeightkg    GP3-151~1111(110N)KG1.2GP4-151~1122(220N)KG1.5GP3-201~1616(160N)KG2.5GP4-201~1632(320N)KG3GP3-221~1616(160N)KG2.5GP4-221~1632(320N)KG3GP3-251~2526(260N)KG3GP3-301~2526(260N)KG3GP4-301~2552(520N)KG3.7GP3-401~3242(420N)KG10GP4-401~3284(840N)KG13GP3-502~4070(700N)KG20GP4-502~40140(1400N)KG38GP3-602~48100(1000N)KG40GP4-602~48200(2000N)KG45The difference of Type A/TypeB/TypeCType A series: One Rolling Ring Linear DriveType B series: One Rolling Ring Linear Drive with Guide Rollers or Guide WheelType C series: One Rolling Ring Linear Drive with accessories,such as shaft,guide,wheel,bearing,steady bar,etcDetailed Photos   Packaging & Shipping     Rolling Ring Linear Drive System XINDIAN15A Traverse Unit Drive Unit/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
