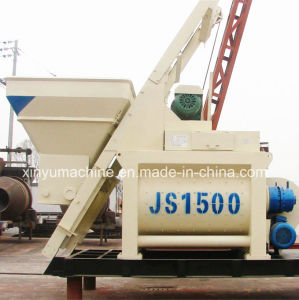

Basic Info.Model NO. JS1500 TypeConcrete MixerShotcrete Type Wet Machining Process Hydraulic StructureRotor TypeProductivity90m²/hFeeding Height1400mmCertificationISO9001: 2000, SGS/BVCondition New Coloras You RequestCharging Capacity2400LDischarging Capacity 1500L Driving Voltage/FrequencyAC380V/50HzMixing Motor Power2*30kwMax Size of Aggregate80mmCircling Period60sOverall Dimension ( L x W x H)2820×2680×2121Mixing Blade Quantity2X7Mixing Blade Speed35r/MinTrademarkJIANJIETransport PackageStandard Export PackingSpecification SGS OriginZhengzhou, HenanHS Code84743100Product Description Introduction double shaft concrete mixerJS double shaft compulsory concrete mixer can mix dry-hard concrete, plasticity concrete, fluidity concrete, light weight aggregate and various mortar. Drum sets with high manganese cast steel liner and mixing blade, which is durable and easy to replace. Once it is combined with batching machines, concrete batching plant will come into being, which applies to various kinds of large&medium scale prefabricated factory, construction site, road, bridge, airport, tunnel and many other projects.JS double shaft compulsory concrete mixer is designed reasonable, easy to operate and woke stably, and it also has many advantages such as high mixing quality, high productivity, low energy consumption, low noise and long life wearing parts. Technical double shaft concrete mixerModelparameterJS500JS750JS1000JS1500JS2000JS3000Discharge vol.(L)5007501000150020003000Charging vo.(L)80012001600240032004800Output capacity(m³)25356090120150Aggregate size(mm)808080808080Working circle(s)606060606060Mixing bladeSpeed3530.525.52323.121.85Quantity2x72x72x72x72x72x7Mixing motor18.5kw30kw37kw2x30kw2x37kw2x55kwWeight(kg)302049506430712098701000Dimension(L*W*H)mm2167*1502*10902680*1790*14802781*1940*15402820*2680*21213120*2310*21502600*4020*16950 Packing and Shipping Packing standard exporting packageShipping7-10 workdays after receive your workable payment We can supply1. installation, debugging, operators trainning;2. maintanence: A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly; B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems; C. Call us at any time if you have problems about our concrete plants; D. If needed, we will send engineers to your site to solve your problems.3. providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc. Company profileFounded in October 1982, Xinyu Machinery Manufacturing is located in Construction Machinery Base, Zhengzhou City, China. Our main products include HZS series concrete batching plants, concrete mixer trucks, construction lifters, stabilized soil mixing stations, concrete mixers, screw conveyors, aggregate batching systems and other related items."JIANJIE" brand construction machinery, which were completely researched and developed by ourselves, sell well not only at home, but also in Southeast Asia, Africa and 30 other countries and regions worldwide. Thus, we have gained a global respect and the support of clients.Covering an area of 126, 000 square meters, our ISO 9001: 2008-certified factory is equipped with 11 production lines manned by more than 1, 000 employees. Depending on our 23 engineers and 186 technicians, we have a strong technical ability. Moreover, we cooperate with Xi'an Jiaotong University for our R&D projects.To begin sourcing, contact us today.Yours Only Industry FAQQ1: What is your payment method? A: T/T payment and Western Union.Q2: How long is the delivery time for my order?A: That depends on what and how many you ordered. Within 7 days supplied from stock, and 15 days is necessary for OEM products and special shaped products..Q3: What is your shipping method?A: Sample order or Unit product: Ship by express such as DHL/UPS/TNT/FEDEX or by air.Bulk order: we suggest by air or by sea.Q4: How do you do quality control?A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.Q5 :Can I have my own LOGO on it?A: Of course you can.OEM service is available.You can send your LOGO to me by email. We'll make you satisfied.Q6: What is your competitiveness? How can I trust your company?A: - We are Manufacturing company.With more tahn 30 years experience.- Working with us, you can lower your cost for concrete pump and its spare parts , as we are factory direct and have the economy of scale.- We located in Zhengzhou,China. Welcome to visit us!
