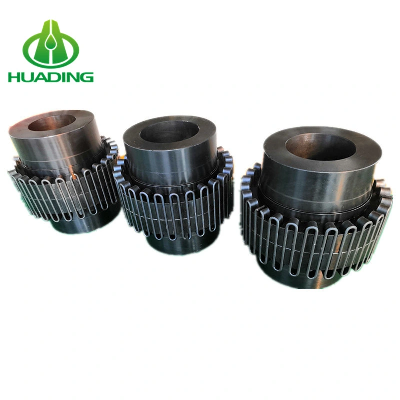

Js Snake Spring Grid Coupling Flexible Snake Spring Couplings

JS200 Series Grid CouplingGrid Coupling is widely used in metallurgy, mining, lifting, transportation, petroleum, chemical, ships, textile, light industry, agricultural machinery, printing machines and pumps, fans, compressors, machine tools and other mechanical equipment and industry shaft transmission. ♦Feature1.The serpentine spring as the elastic element, the elastic strong at the same time, greatly improves the grid coupling torque, widely used in heavy machinery and general    machinery.The serpentine spring special technology department, has long service life, allowing higher speed, has good ability to compensate in the axial, radial and angle 2.High transmission efficiency, start safety. Transmission efficiency of up to 99.47%, short-time overload capacity is two times the rated torque, operation safety. 3.Simple structure, convenient assembly and disassembly, long service life 4.Damping effect is good to avoid the resonance. ♦Basic Parameter And Main DimensionModelNominalTorqueNmSpeedr/minY,ZBored1,d2DBJALFEHMClearance (K)Oil injectionKgNo bore massKgMaxMinMinStandardMaxJS2014560002814111107334052407210551.5350.0293JS20212560003514120107335052408210551.5350.0293.4JS20322460004214129107345552418710591.5350.0573.9JS204400600048141481273965624510012681.5350.0576JS205630500055191621274375625211512.7751.5350.0858JS206900450065191731674590825513412.7781.5350.08512JS207180042007528200228601051126615312.71051.546.50.1719JS208315040008528232228601251127017012.71081.546.50.25526JS209560032001004226729072140142-20015.71341.56100.42539JS210800030001104228629074160142-21815.71351.56100.5154JS2111250027001256031929089180142-250171571.56130.7472JS2121800024001507037835089220172-294211591.56130.91117JS2132500022001807041635089255172-327211651.56131.14169JS214355002000200110476430106270212-3882420236131.9242JS215500001700220120533430114305212-4243021636132.8349JS216630001600250130584510119360252-4743022636133.5491·Note:The shaft holes of the half coupling can be made into conical holes. The dimension of the conical holes are the same with JS100 series size.♦Product Show♦Other Products ListTransmission Machinery Parts NameModelUniversal CouplingWS,WSD,WSPCardan ShaftSWC,SWP,SWZTooth CouplingCL,CLZ,GCLD,GIICL,GICL,NGCL,GGCL,GCLKDisc CouplingJMI,JMIJ,JMII,JMIIJHigh Flexible CouplingLMChain CouplingGLJaw CouplingLTGrid CouplingJS♦Our CompanyOur company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.Welcome to customize products from our factory and please provide your design drawings or contact us if you need other requirements.♦Our Services1.Design ServicesOur design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.2.Product Servicesraw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping3.Samples ProcedureWe could develop the sample according to your requirement and amend the sample constantly to meet your need.4.Research & DevelopmentWe usually research the new needs of the market and develop the new model when there is new cars in the market.5.Quality ControlEvery step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.♦FAQQ 1: Are you trading company or manufacturer?A: We are a professional manufacturer specializing in manufacturingvarious series of couplings.Q 2:Can you do OEM?Yes, we can. We can do OEM & ODM for all the customers with customized artworks of PDF or AI format.Q 3:How long is your delivery time?Generally it is 20-30 days if the goods are not in stock. It is according to quantity.Q 4: Do you provide samples ? Is it free or extra ?Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be deducted.Q 5: How long is your warranty?A: Our Warranty is 12 month under normal circumstance. Q 6: What is the MOQ?A:Usually our MOQ is 1pcs.Q 7: Do you have inspection procedures for coupling ?A:100% self-inspection before packing.Q 8: Can I have a visit to your factory before the order? A: Sure,welcome to visit our factory.Q 9: What's your payment?A:1) T/T. 2) L/C ♦Contact UsWeb: huadingcoupling.en.made-in-china.comAdd: No.1 Fuyang Road,Chengnan park,Jingjiang City,Jiangsu Province,China/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
