Ball Screw Right Hand Thread Ball Screw Shaft

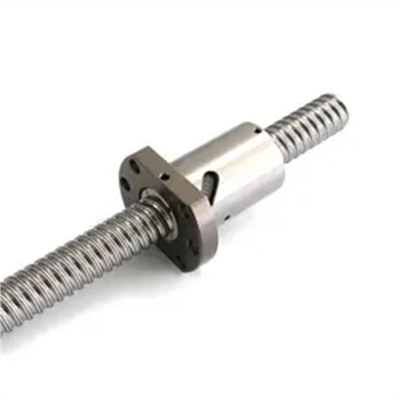

Ballscrews consist of a screw spindle and a nut integrated with rolling elements that cycle through a return mechanism. Ballscrews convert rotary motion into linear motion, and are most commonly used in industrial machinery and precision machines. Hiwin Corporation provides a wide range of ballscrew configurations to satisfy your special application requirements. Hiwin has the capability of producing JIS C0 class ground ballscrews, and DIN 5 class (up to 23 microns) for precision rolled ballscrews. Ballscrew O.D. ranging from 4mm to 120mm, and with Dm-N values up to 220,000.BXY precision ballscrews are made through a grinding process of the screw spindle. Precision ground ballscrews provide high positioning accuracy and repeatability, smooth movement and long service life. These highly efficient ballscrews are a perfect solution for a variety of applications.SFU sizes: 1204 1604 1605 1610 2004 2005 2010 3204 3205 3210 4005 4010 5005 5010 6310 6320 8010 8020  10020DFU sizes: 1605 2005 2505 2510 3205 3210 4005 4010 5005 5010 6310 6320 8010 8020 10020SFI sizies: 1605 2005 3205 2510 3205 3210 4005 4010 5010SFS sizes: 1205 1210 1605 1610 1616 1620 2010 2020 2505 2510 2525 3205 3210 3220 3232 4005 4010 4020 4040 5020 5050 SFY sizes: 1616 2020 3232 4040 5050SFK sizes:   0601 0801 0802 082.5 1002 1004 1202 1404Left hand screw:1204 1604 1605 1610 2005 2505 2510 3205 3210 4005 4010 5010   Packing1.Pipe +Wooden box packing2.Plastic bag+Wooden box packing3.Industrial packing4.According customers requirements to do Company:BXY BRAND is a professional Bearing and Grease Manufacturer & Trader that focus on Research & Development, Design, Production and Sales of Bearing and Grease.There has been over 20years of experience in Bearing and Grease domestic & overseas market since we established. In addition to excellent OEM services, we also registered our own brand: BXY,QHW,SKYN,etc.In order to supply better service and products for valued customers from all over the world, BXY BRAND follows the development policy of "quality-oriented, customer first" with the goal of "Zero Defect" and the core value of "Integrity of the root" to build Shining Industry into a modern enterprise company with advanced system, technology, management and beautiful environment. We use a fully automatic production line and advanced testing equipment to track and control the whole production process to ensure the stability and consistency of our quality.Meanwhile, the complete strict quality control process can ensure high quality from raw material purchasing to finished product.Develop up to today, Bearings and Grease from factory are very popular all over the world, such as Russia, Spain, Brazil, America, South Africa, Southeast Asia and other countries.Major Competitive AdvantagesMore than 20years of professional experience as a manufacturer of bearing and lubricating grease·Diversification of packaging, standard industrial package or unique package on your request·Strong researching and developing team to solve grease problems.·Professional Technical Support·Just-in-time delivery·Small trial orders can be accepted·Free sample is available·High quality bearings with international standardWhy Choose UsWe take "Zero Defect" and " Integrity-Oriented" as our work goal and core value with Quality of the root and customer first.Establish long-term business relationship with us, you will get:·Quick response within 24/7·Professional technical support·Reasonable price with right quality·Prompt lead time·Excellent after-serviceAnd more extra values when you need.               /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
