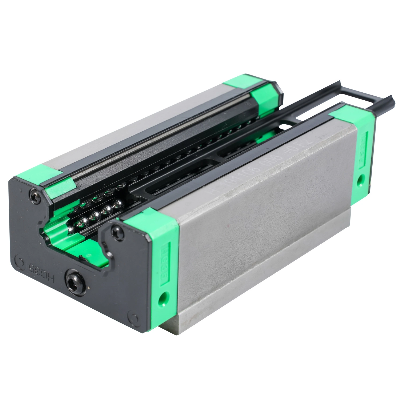

Low Price CNC Linear Guideway HGH15 Linear Guide Bearing

Product DescriptionIntroduction:Linear guide is consisted of rail, block, rolling elements, retainer, recirculator, end seal etc. By using the rolling elements, such as balls or rollers between the rail and block, the linear guide can achieve high precision linear motion.Linear guide block is divied to flange type and square type without flange.or Seal type block, Standard type block, Double bearing type block, Short type block. Also,linear block is divided to high load capacity with standard block lenth and ultra high load capacity with longer block length.   Catalogue of Linear Guideways:1.CDH SERIES IS A HIGH ASSEMBLED BALL LINEAR GUIDE RAIL;2.CDG SERIES IS A LINEAR GUIDE WITH ROLLERS ROLLER TPYE BLOCK,WHICH CAN AFFORD HIGH LOAD;Structure of Linear Guideways:1.Rolling cycle system: slider, guide rail, end cover, steel ball, ball holder;2.Lubrication system: oil nozzle and tubing joint;3.Dust-proof system: oil scraper, negative dust seal dust-proof sheet, guide rail bolt cover, metal scrapAdvantages of Linear Guideways:1.Easy to install ,direct locking with screw and worktable;2.Design of the ball arrange to upgrade weight bearing capacity;3.Long life with high speed,high accuracy and linear motion;4.High speed, low noise;5.High rigidity ,multiple precisionApplicable Industries:Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction works , Advertising Company, Others.Product DataCDG-B/CDG-BL                    Model NoDimensions of AssemblyDimensions of block(mm)Dimensions of RailLoad RatingStatic permissible MomentWeight HH1NWB1 B*CL1LM*LTWRHRDdhPCC0MRMPMYBlockRail kNkNkN-mkN-mkN-mkgkg/mCDG30B456166010 40*4071109.8M8*109.52828149124039.182.11.4451.061.060.94.41CDG30BL 40*6093131.848.11051.8461.7121.7121.16CDG35B556.5187010 50*5079124M8*12123430.2149124057.9105.22.171.441.441.576.06CDG35BL 50*72106.5151.573.11422.932.62.62.06CDG45B70820.58613 60*60106153.2M10*1716453820141752.592.6178.84.523.053.053.189.97CDG45BL 60*80139.8187116230.96.335.475.474.13CDG55B801023.510012.5 75*75125.5183.7M12*1817.5534423162060130.52528.015.45.44.8913.98CDG55BL 75*95173.8232167.8348.0011.1510.2510.256.68CDG65B901231.512625 76*70160232M16*2025635326182275213411.616.2011.5911.598.8920.22CDG65BL 76*120223295275.3572.722.5522.1722.1712.13CDG-A/CDG-AL                    Model NoDimensions of AssemblyDimensions of block(mm)Dimensions of RailLoad RatingStatic permissible MomentWeight HH1NWB1C1B*CL1LMT1WRHRDdhPCC0MRMPMYBlockRailkNkNkN-mkN-mkN-mkgkg/mCDG30A426319094472*5271109.8M10102828149124039.182.11.4451.061.061.164.41CDG30AL93131.848.11051.8461.7121.7121.52CDG35A486.53310095282*6279124M10133430.2149124057.9105.22.171.441.441.756.06CDG35AL106.5151.573.11422.932.62.62.40CDG45A60837.51201060100*80106153.2M1215453820141752.592.6178.84.523.053.053.439.97CDG45AL139.8187116230.96.335.475.474.57CDG55A701043.51401270116*95125.5183.7M1417534423162060130.52528.015.45.45.4313.98CDG55AL173.8232167.8348.0011.1510.2510.257.61CDG65A901253.41701482142*110160232M1623635326182275213411.616.2011.5911.5911.6320.22CDG65AL223295275.3572.722.5522.1722.1716.58About Us         Dongtai Chaode Machinery Co., Ltd. is located in Dongtai City, Jiangsu Province, the hometown of the beautiful "Legend of Dong Yong". It is 180 kilometers away from Shanghai and has convenient transportation. It belongs to the 2-hour economic circle of Yangtze River Delta. The high-speed railway from Shanghai to Dongtai takes only one hour. It is our aim to produce first-class and high-precision products. The company has advanced professional processing, production and testing equipment for rolling functional components at home and abroad, and strictly requires every processing procedure to keep up with the world's leading trend in the industry. With an open mind, learn from leading enterprises at home and abroad, jointly update new technologies and materials in the industry, provide necessary parts for accelerating the replacement of foreign equivalent     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
