Get Parameter Quotation Zwy Series Underground Mucking Rock Loader Inclined Shaft

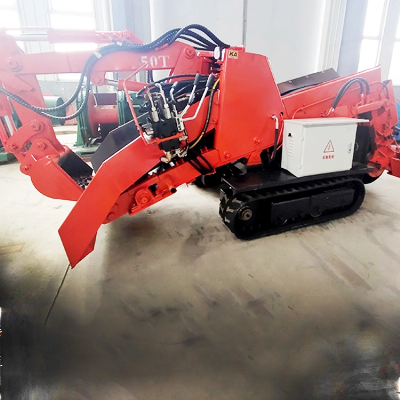

Product Description ZWY-80/45L crawler mucking rock loader, special sloping type ≤ 32 degrees, is a continuous production high-efficiency ore-out equipment, mainly used for excavation of mine rock roadway and semi-coal rock roadway, also It can be used for loading operations in diversion tunnels, railway tunnel construction, and national defense cavern construction. It can be used in conjunction with hydraulic mine drilling trucks produced by our company to realize mechanization of mine excavation and greatly increase excavation speed. It can be applied to small sections and slopes. 20°~-32° roadway. 1.The main features of ZWY-80/45L crawler mucking loader: Retrieving power, strong loading capacity. Sealed and lubricated crawler mucking loader it easy to adjust the tensioned crawler unit and has a long service life. 2.Good interchangeability; The hydraulic breaker can be installed to crush, repair the large rock and coal blocks after the blasting. Can use the work arm to achieve the risk of face-to-face, full-section rock loading, leaving no dead ends, no manual cleaning of the work surface. Applicable to tunnel section, tunnel section, roadway section, laneway section, inclined well section, drift section, diversion tunnel section, diversion tunnel section, culvert section, mine tunnel section, underground construction section, geotechnical engineering section, mining project section, excavation section, large section, small section tunneling, traction, transportation equipment and accessories.zmwm15  Product ParametersModelZWY-60ZWY-80ZWY-120ZWY-180Excavating Width(mm):3870480042006500Uninstall Length(mm):1530185016002800Excavating Height(mm):230028001800-27004400Excavating Depth(mm):450500450800Unload Height(mm):1400(Changeable)1700(Changeable)1100(Changeable)2693(Changeable)Minimum Loading Height(mm):1350(Changeable)1350(Changeable)1200-1600(Changeable)1700(Changeable)Unload Distance(mm):1600(Changeable)1700(Changeable)1600(Changeable)3500(Changeable)Maximum Rotation Angle(°):±50±50±50±50Weight(T):8.58.25.818.6Machine Dimension:5000x1490x16506100x1700x18005600x1650x170013088x2350x2600Loading Capacity(m³/hour):608060180Min Turning Radius(mm):40005500460012000Climbing Ability(°):≤20≤25≤10≤25Travelling Speed(m/min):2-4.52-4.52-4.50.54Motor Power(kw):223018.5/2255Max. Material passing Size(LxWxH) (mm):800x550x500650x700x650810x580x420800x780x800Ground Clearance(mm):200230(Changable)200380Applied Working Section(W*H) (m):≥2x2≥2.2x2.2≥2x2≥3.8x3.8Nominal Working Pressure(Mpa):20252032Conveying Mode:ScraperLeather BeltScraper/Leather BeltScraper/Leather BeltScraper/Leather BeltDetailed Photos  Company Profile/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
