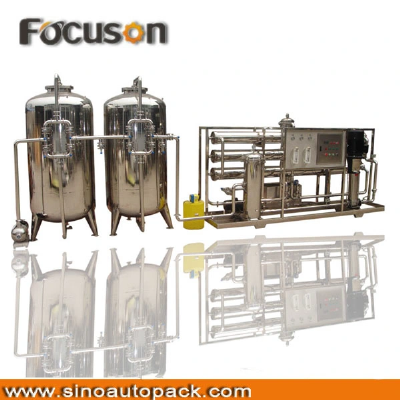

10T water treatment process How the Reverse Osmosis System Works A semi permeable membrane in a reverse osmosis system only allows certain things to pass through. This membrane passes water easily but also prevents many other contaminants from passing by trapping them. Water is normally on both sides of the membrane, the water on each side has a different concentration of dissolved minerals. The water in the less concentrated solution tries to dilute the more concentrated solution. Water will pass through the membrane from the lower concentration side to the greater concentration side. The osmotic pressure (see diagram) created by the difference in water levels, will counter the diffusion process forming an equilibrium between the two sides. Technical route and flow diagram instructions The technical route is as following. Raw tank-->Booster pump -->Quartz sand filter-->activated carbon filter--->Anti-scalant Dosing-->Sediment filter-->High pressure pump-->RO desalination device-->Permeate tank Features Materials of Construction Skid Frame: SS304 Membrane Elements: HYDRANAUTICS CAP3-8040 Membrane Housings: SS304 Low pressure piping: SS304 High pressure piping: SS304 Pump and Motor Pump: 304SS vertical multi-stage centrifugal Motor: TEFC, 380/460 VAC, 3-phase, 50/60 Hz. Standard Features 8" x 40" High rejection membrane elements 5-micron sediment pre-filter housing Automatic inlet solenoid valve PLC control Product water conductivity monitor Operating pressure gauges Product and concentrate flow meters Concentrate and recycle flow control valves Low inlet pressure switch with shutdown alarm Auto/Manual wash Optional Equipment Available Atmospheric storage tanks with level control and repressurization pump Pressurized storage vessels UV Ozone generator Membrane clean-in-place (CIP) systems Pretreatment chemical injection systems Model NoWT-RO-10000Capacity10000LPH(Liter per Hour)Nominal Recovery65-75%Nominal Salt Rejection99.60%Operating Temperature1 5°C -4 5°CDesign Temperature25°CFeed Pump4.00KWHigh Pressure Pump11.00KWVoltage2 2 0V / 380V / 460V - 50Hz / 60Hz/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
