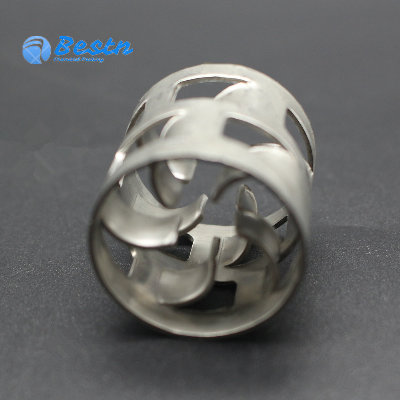

Metallic Pall Ring in Vacuum Distillation for Mass Transfer

Product DescriptionMetal pall ring is a open-hole ring packing. The open surface takes up 30% of the whole wall surface; This character helps the liquid & gas pass freely from the windows of the rings.Metal Pall Ring is an industry standard design media developed from the Raschig Ring and is widely used in all variety of applications. Such as all kinds of separation, absorb plants, desulfuration, separation and absorption applications at atmospheric pressure and under vacuum.Applications:It is applied to various of device of isolation, absorption, desorption, common decompression such as Toluene separation, Ethylbenzene separation, Isooctane separation, and desulfurization system and so on.Geometric Parameter:Size(mm)Bulk density(kg/m3)Number (per m3)Surface area(m2/m3)Free volume (%)16*16*0.336020100034695.525*25*0.43025100021296.225*25*0.5400510002169525*25*0.64615100021994.238*38*0.42181500014397.238*38*0.52621518014596.738*38*0.63281500014695.950*50*0.5194650010697.550*50*0.8315650010896.450*50*0.9365650010995.476*76*0.820518306997.490*90*1.022911606297.1The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other wall thicknesses are available on request.Material available: carbon steel, stainless steel including 304, 304L , 410,316, 316L .     Hot Product Company ProfilePackaging & ShippingPackaging & ShippingPackage TypeContainer Load CapacityDelivery timeQualityInsurancePayment Terms20 GP40 GP40 HQTon bag20-24 m340 m348 m3Within 3-10 daysChinese National Standard; Offer quality assurance as request.T/T, L/C, Paypal, West UnionFAQ1.Q:Are you trade company or manufacture?A:We are manufacture with more than 14 years experience,and the price is the factory price. 2.Q:How to control the quality?A:We have strict quality by QC team. 3.Q:How long is the delivery time?A:It is about 5 days after payment for stoct goods,10-15 days for new producing goods. 4.Q: How to get the sample ?A: Please contact us for send your samples. 5.Q:What is the payment terms?A:Flexible and diverse payment ways can be chosen, make you more convenient .Generally,30% in advance,70% before shipment 6.Q:Can you do OES service?A:Yes,size & shape could be made as customer requirment/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
