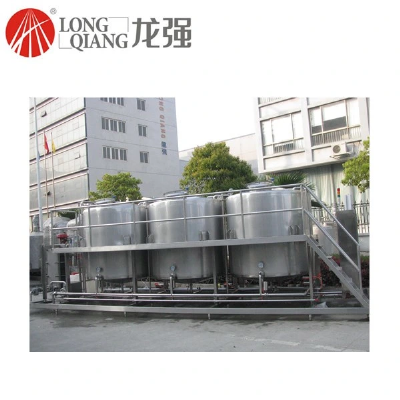

Alkali/Acid CIP Solution Cleaning Machine Tank Clean in Place System

Semi-auto Split Type CIP Cleaning SystemWorking principleThe heating way for the cleaning liquid is auto-heating. The operating principle: set the cleaning temperature through the temperature controller to control the steam control valve's opening frequency to limit the steam amount making the cleaning liquid keep at needed temperature. All the tanks liquid level in the CIP system adopts the auto-alarm. It will be increased the concentrated acid and alkali through manually way when the cleaning liquid concentration reduced. The cleaning process transforming should be operated by the manually to change some relevant pipelines and valves. Workers should increase the water when the tank lack of water.Technical ParameterTank size1000L-10000LCIP tank typeAlkali tank, acid tank, hot water, clean water tank, water recycle tankCleaning recycleSingle circuit, double circuits, three circuits, four circuitsHeating methodCoil pipes inside, plate heat exchanger, tube heat exchangerAutomatic types and charactersFull Automatic1. Flow rate auto control; 2.Temperature auto control; 3.Auto compensate the cip liquid level;4.Auto compensate the liquid concentrate; 5.Cleaning liquid transfer; 6.Auto alarmSemi-automatic control1.Temperature auto control 2.With control panel, manual control the othersManual control1.Manual operate on the cleaning process/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
