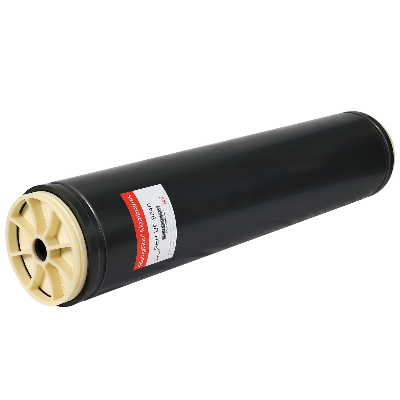

E-Coat PVDF UF Membrane Module

We offer a complete set of membrane products for the ecoat industry and our spiral UF membranes are world standard across the electrocoat paint industry. Our UF membranes are suited for any cathodic/anodic paint bath, we have neutral and positive charge EDUF membranes, which guarantee optimal performance for your paint process. Till now, we have so many successful replacements for automotive paint systems in the world.Product Introduction:1. Membrane material: PVDF (positive charge is available)2. Configuration: spiral-wound with integrated PVC cageProduct Application: E-COAT Anodic/Cathodic Paint recover in Automobile, home appliances, metal furniture, jewelry and other industries.  Decoding of our products codes:SEP-UF-8040  ConfigurationApplicationOuter WrapMembrane TypeMembrane MaterialSizeSPIRAL E-COAT S=SANITARY NETUltrafiltrationF=PVDFN=PAN4020 4.0"×20"G=GLASS FIBER4040 4.0"×40"F=FLANGE5640 5.6"×40"P= PVC HOUSING INTEGRATED7640 7.6"×40" 8040 8.0"×40" 8640/7647.5/4051.5Material Construction:         Membrane: Polyvinylidene Fluoride (PVDF)       Backing Material: Polyester  Permeate Tube: Unplasticized Polyvinyl Chloride (UPVC)    Seal Carrier: ABS Plastic       Brine Seal: EPDM          Operating Limits / Conditions:Maximum Inlet Pressure:65 psi (4.4bar)Recommended Inlet Pressure: 44-60 psi (3.0-4.1 bar)Recommended Outlet Pressure:15-40 psi (1.0-2.7 bar)Maximum Operating Temp:122oF (50ºC)Allowable pH - Continuous Operation: 2.0-10.0Allowable pH - Short Term Cleaning:2.0-11.5@50ºC, 30min  Cross Replacements ReferenceRisingSun ProductsOther brandsRisingSun ProductsOther brandsSES-UF-4040OSMONICS  416ED1SEF-UF-7640KOCH 7533-M183-LPFSES-UF-8040OSMONICS  815ED1KOCH 7533-M300-LPF  SEG-UF-4040PARKER EP4040-BSF1-H4 SYNDER V62-4040HSEG-UF-7647.5SYNDER V62-7647.5H PARKER EP76475-BS01-H7SEG-UF-4040 SSEPRO PVDF400-4040-31F  SEG-UF-4051.5SYNDER V62-4051.5HSEG-UF-8040PARKER EP8040-BS05-H8 KOCH 8040M-183-LPHNSEG-UF-5640PARKER EP5640-BS01-H5SEPRO PV400-7940-31FSYNDER V62-5640H SEPRO PVDF400-5640-31F  SEP-UF-8040KOCH 8638 M-183-LPPSEG-UF-7640PARKER EP7640-BS01-H7KOCH 8638 M-300-LPPSYNDER V62-7640H SEPRO PV400-7640-31D   SEP-UF-10040KOCH 10738 M-183-LPPKOCH 10738 M-300-LPPWhy us?1. All membrane products manufactured in our ISO 9001:2008 Certified Facilities.2. Reliable membrane material provides a robust performance in either Anodic/Cathodic electrocoat process conditions.3. We can offer cost-saving replacement membranes for all brands in the world including KOCH, Nanostone, Parker, AMI, Synder, Microdyn Nadir….4. OEM service is available.5.100% quality tested before delivery.6. Testing sample is available.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
