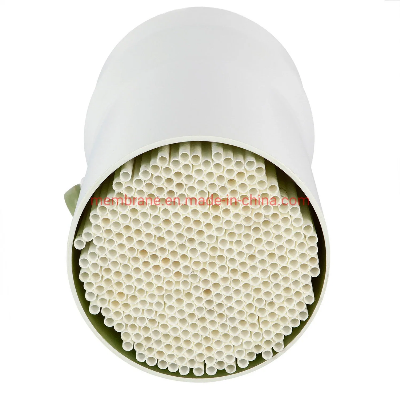

Tubuar Mbr for Waste Water Treatment

Tubular membranes are particularly suited to liquid with high viscosity or suspended solids, because their wide flow paths make them highly resistant to clogging. Tubular membranes system is an external and separated filtration system. For high solid content and viscosity liquid, we use adjustable cross-flow velocity to make the membrane run under optimal conditions and extend membrane service life. At the same time, it has more convenient cleaning, maintenance, and operation under closed pipeline.SUN® Tubular membranes use a cross-flow filtration technology. The cross-flow filtration can reduce cleaning times and downtime, so as to maintain a high flow rate. Some membranes are available for back washing, if necessary, you can also use permeate or chemical cleaner for back washing, effectively extend the membranes working life.Decoding of SUN® Tubular Membranes Model What Membrane Sheet We Have?   Hydrophilic membrane sheet specifications:ParameterUnit Membrane Material                       PVDFPANPESPore size/MWCOnm/Dalton100,00030nm50,0000.1μm100,00050,00010,0005,000Clean Water FluxLMH,100kpa>800>800>150>600>350>200>25>15Operation PressureKpa-20~800-20~800Max.Operation TemperatureºC6060pH Range 2~122~12Chloringe Exposureppm.h250,000250,000Note: Membrane inner tube diameter is 5-12.7mm; Superior fouling resistance; Higher sustainable flux; Easier cleaning;Strong negative pressure resistance.Maximum operating pressure up to 10bar, Working life up to more than 5 years.SUN® Tubular Membranes / Acid and Alkali Recycle  Process Introduction:* Tubular membrane with modified PES material can work at pH14, which is suitable for recycle acid and alkali.* Remove suspended particles, turbidity, and macromolecular proteins.* High anti-fouling membrane module design*Offer high quality pretreatment for the subsequent RO/NF process.Process Flow for Alkali RecoveryClient: A pharmaceutical companyProject Purpose: Alkali waste water recovery  Water type:Resin regenerates alkali waste waterApplication:Reuse of recycled waterTurbidity:790mg/LAlkalinity:12,000mg/LConductivity:41ms/cm Total hardness:2,200mg/LCOD:17,000mg/LpH:13-14Sulfate radical:1,700mg/LChloride :475mg/LTDS:34,000mg/LTemperature:30-45ºCDesign capacity::1,400m3/dayPermeate quality:SDI≤3Concentration ratio:10timesPermeate flux:80-100LMH   SUN® On Site Application PicturesApplications:Difficult waste water fields:Landfill leachate pretreatmentPretreatment for alkali liquor recycleSpecial chemical waste water (Coking, Tannery, textile, wood pulp bleach) treatmentReturn injection of produced water from oil fieldEmulsified oil treatmentFAQ 1, Q: Are you manufacturer?     A:Yes, definitely,our factory locate in Beijing,China.  2, Q:What's your main products ?     A: we manufactur filter membranes, RO, NF, UF, MF membrane, spiral wound/flat sheet membrane, tubular membrane, MBR, DTRO,STRO,E-coat UF membrane, anode cell etc.  3, Q: what's your main market?     A:There're about 94 countries we've been exported, mainly in USA, Korea, UK, France, Russia, Germany, India, Spain, Brazil etc. 4, Q:Can you supply free sample?    A:Yes, we can supply free samples which are in stock, and the freight charge should be on your side. 5, Q: What about the package?    A:The membrane elements are wrapped with plastic bubble paper, then carton box, safe wooden box outise, the breakage is    less than 1%. 6, Q: Do you offer OEM?    A: Sure!  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
