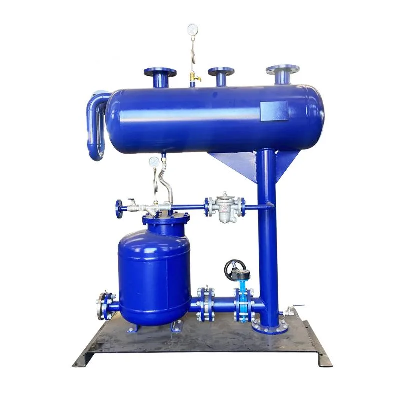

Steam Condensate Recovery Pump for Boiler System Water Treatment

Product DescriptionThe pneumatic condensate recovery pump is designed to pump condensate, oil and other high-temperature liquids without using electricity, without maintenance, and can pump a large amount of condensate and other liquids from low-level, low-pressure or vacuum places to high places and high pressure area. Compared with traditional electric pumps, pneumatic condensate recovery pumps can pump high-temperature condensate water above 99°C. Since there is no high-speed rotating sealing structure, motor and pump impeller, there are no leakage and cavitation problems. Product ParametersSpecificationsMaximum Air Source Working Pressure: 1.0MpaMaximum Design Pressure: 1.6MpaSingle Pump Discharge Capacity: Max 5000 (kg/h) - 0.8Mpa - 12mMaximum Operating Temperature: 198°CMaximum Lift: 80mWorking PrincipleThe liquid enters the pump under the action of gravity through the inlet check valve, causing the float to rise. When the float goes up to its upper limit position, the air supply valve opens, steam or compressed air enters the pump body, and gradually builds up pressure in the pump until it reaches a state sufficient to overcome the back pressure, and the pressurized liquid opens the outlet check valve , start to discharge liquid. When the float goes down to its lower limit position, the air supply valve is closed, the steam or compressed air is cut off, and the exhaust valve is opened at the same time, the pressure in the pump decreases. The liquid now refills the pump chamber.StructureCondensate Recovery Pump + Water Tank + Valves + Electronic Detector + Metal Frame  Discharge Capacity1. This diacharge diagram is drawn based on the height of the water inlet pressure head being 0.3m and the pipe diameter of the discharge port of the pump body being DN50.2. Transverse Axis-Discharge Data, Longitudinal Axis-Dynamic Pressure Data, Red Curve-Total Effective Head.  3. Dual pumps have twice the discharge capacity of single pumps, three pumps have three times discharge capacity of a single pump. Selection Model Maximum Recovery Condensate Inlet Outlet  Air Intake Air Source Working Pressure Dimensions ABCBTLBZ-56T/HDN80/DN50 (Flange)DN50 (Flange )DN200.2-1.0MPa1463460930 Model Maximum Recovery Condensate Inlet Outlet  Air Intake Air Source Working Pressure Dimensions ABCBTLBZ-56T/HDN80/DN50 (Flange)DN50 (Flange )DN200.2-1.0MPa1463460930       Model Maximum Recovery Condensate Inlet Outlet  Air Intake Air Source Working Pressure Dimensions ABCBTLBZ-1515T/HDN100 (Flange)DN100 (Flange )DN800.2-1.0MPa178515001380  Features1. Complete combined pump design - the overall design is excellent, ensuring working performance and convenient on-site installation.2. Use steam or compressed gas as power - it is convenient to connect pipelines on site, without power supply, and is suitable for dangerous and dirty and humid environments.3. Floating ball mechanism - no cavitation and mechanical seal problems inherent in electric pumps, reducing maintenance costs and downtime.4. Open water tank design - no need for a water tank on site, reducing costs.5. Metal frame structure - easy to carry.6. Can recover and remove condensed water and concentrate sewage in any operating environment.7. It can be used in operating areas with high requirements for hazardous and explosion-proof grades.8. Capable of operating high temperature liquids without cavitation, reducing maintenance costs, also suitable for industrial liquids (oil, sewage and hydrocarbons).ApplicationApplied to long-distance transportation, low pressure or vacuum system, high back pressure condensate system, occasions with large pump liquid volume, occasions that do not require electricity, occasions with flammable, explosive and harmful media, humid and dirty environments, and open discharge Water storage tank, the best choice for condensed water in the sump.Maintenance  1. The drainage (sewage) ports of the pump and column must be opened regularly for drainage (sewage).2. If the pump is out of service for a long time, it is necessary to open the pump cover and apply butter to the rotating parts of the pump core for maintenance.  Company ProfileNanjing Beite Air Conditioning Equipment Co., Ltd. is a high-tech comprehensive enterprise specializing in the research and development, production, sales and after-sales service of HVAC water treatment equipment. Our company has two production plants, four standardized workshops and two office buildings, with a total area of 48,000 square meters. We mainly provide corresponding water treatment equipment for HVAC circulating water system with one-stop supply and service.   Professional Production Line     Our Team     Exihibtion       Our Advantages17 years of R & D and production experience in HVAC industryFast delivery, smart factory standardized production  24 hours on-line service, prompt and professional answering  Installation and comission support and professional after-sales service  Cost-effective Beite focus on h
