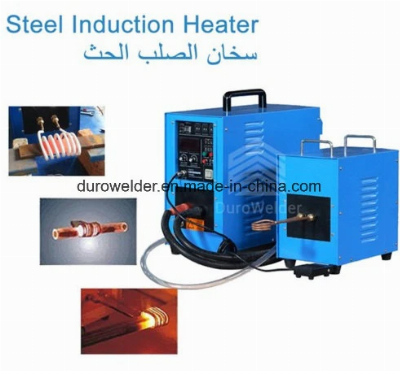

Kih Series High Frequency Inductive Heating Treatment

KIH Series High Frequency Inductive Heating Treatment  Main characteristics:1. IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost. 2.100% Duty cycle, continuous working is allowed at maximum power output. 3. Constant current or constant power status can be selected accordingly to achieve higher heating efficiency; 4. Display of heating power and heating current and oscillating frequency; 5. Simple to install, Installation can be done by unprofessional person very easily; 6. Light weight 7. Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability; 8. The separated models are designed to fit the dirty surrounding of some cases. TypeKIH-60ABWork power3×380V/50-60HZThe range of operating voltage340V-420V(370-450)V ACOutput power60 KWFluctuating frequency   30-80KHZ    Output current400-2400ATiming (Heat time  Retain time Cool time)1-99SThe flow rate of cooling water  0.2 Mpa 7.6L/MinWater temperature protection point   40Duty cycle100% (40degree room temperature)WeightMainparts:41Kg extension:37kgSizeMain parts:640*280*550mmExtension: 510*260*410mm/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
