RO System Seawater Desalination System Water Treatment

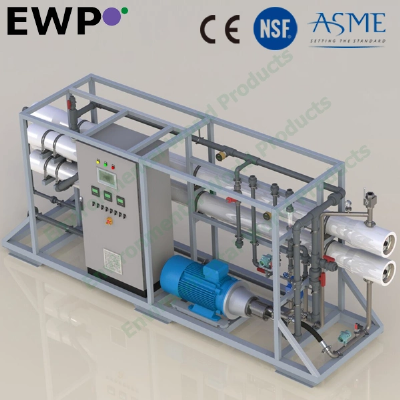

RO System Seawater desalination system water treatmentEWP SWROL series sea water systems have been engineered for capacities ranging from 5 m3/h to 50 m3/h for Sea water desalination design. Benefits1. Fully Equipped and Customizable 2. Skid Mounted 3. Components Easily Accessible 4. Pre-plumbed Wired and Assembled 5. Individually Test and Preserved 6. Low Operation and Maintenance Cost 7. Easy Maintenance and Servicing 8. 1-Year Limited Warranty Standard FeaturesMembrane Elements and Housings· Membrane model --- SW30-400 · Membrane manufacturer --- Filmtec · Nominal rejection --- 97%-99% · Housing --- FRP, 8inch, 1000psi, side port · Housing manufacturer --- Firstline Control System· Siemens PLC · Siemens HMI · ABB VFD · Parameter setting · High pressure pump soft start · Tank level control · Feed water pump MCC and control reserved Electrical Valve· Valve body --- UPVC · Actuator motor --- 220VAC or 24VDC HP Pump and ERD· Pump head inner wet contact --- SS2207 · Pump head (Case) --- SS2205 · Brand --- Danfoss Instrument· Digital flow meter --- Permeate, concentrate · Conductivity meter --- Permeate · pH meter --- Feed, permeate · Pressure gauge --- Pre-filter, post-filter, pump discharge, concentrate · Pressure switch --- Feed, concentrate · Pressure transmitter --- Pre-filter, post-filter, HP pump discharge, concentrate Connection Port· Feed seawater inlet · Fresh water inlet · Permeate · Drain · Air release Material of Construction· High pressure piping --- SS2205 · Low pressure piping --- UPVC · Frame --- SS304 with marine grade painting · Control box --- IP54; SS304 with painting Documentation Included· Operation and maintenance manual · Drawings: P&ID, electrical diagram, 3D Options· Containerized · Feed water pump · Feed water conductivity meter · Communication: Modbus RTU · Remote monitor and control · Anti-scalant dosing unit · SBS dosing unit · ORP meter · Clean-In-Place (CIP) system · Pretreatment system Maximum Feed Temperature               °C (°F)35 (95)pH (Continuous)4 ~ 9Minimum Feed Temperature                °C (°F)5 (41)Minimum pH (Continuous)4Maximum Feed Pressure                    bar (psi)5 (72)Free ChlorineundetectableMinimum Feed Pressure                     bar (psi)2 (29)Iron                                          ppm
