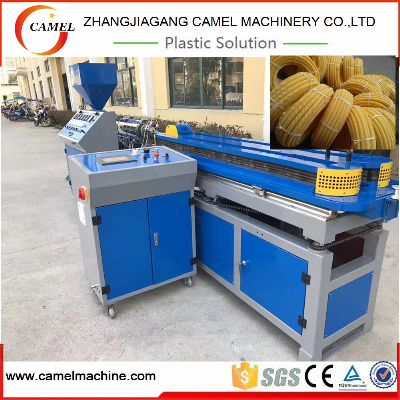

PP PE Plastic Single Wall Corrugated Pipe Production Line

Product Description of single wall corrugated pipe making machineApplication:The single wall corrugated pipe are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etcFeatures :1.Extruder: high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.2.Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.3.Forming modules: it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change4.Coiler :Single position or double position with torque motor.Technology data:  ModelPipe diameter range(mm)Screw diameter(mm)Motor power(kw)Molding power(kw)Rewinder power(kw)Output(m/min)SJ459-3245115.51.53-12SJ6520-5065305.531.5-6SJ9075-16090375.55.51-5Detailed image of single wall corrugated pipe making machine Our service of single wall corrugated pipe making machine We will test machines in our factory before delivery. Customer check machines running in our factory, after customer is fully satisfied with the quality, then delivery, when machines arrive in customer's factory, we will send our engineer to test the machine in customer's factoryWe supply machines technical support, material formulation; guarantee machines and spare parts supplyFAQ of single wall corrugated pipe making machineQ: Are you trading company or manufacturer ?A: We are factory. Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ?A: 30% T/T in advance ,70% balance before shipment or Negotiable If you have another question, please feel free to contact us as belowContact usCompany name: Zhangjiagang Camel Machinery Co.,ltdAddress: Yongli Economic development zone, LeYu town,Zhangjiagang city, Jiangsu province, ChinaTel: +86-512-58539862 Fax: +86 -512-58539863Mobile 0086 18905630553Website: camelmachinery.en.made-in-china.com /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
