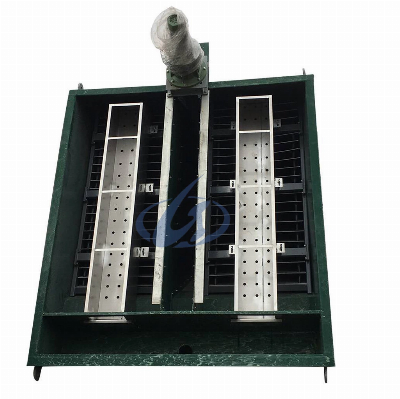

Industrial Waste Water Treatment Lamella Clarifier

Product DescriptionLamella Clarifiers are highly efficient in removing heavy metals, ink and other contaminants from wastewater. GYE clarifiers feature integrated rapid mix tank and floc tank, eliminating the need to buy these tanks separately and providing a much simpler installation process. Our design ensures precise mixing so chemical coagulants can be used effectively and efficiently. Low shear mixers on the floc tanks help mix the coagulants without breaking the floc.FeacturesStainless steel or Epoxy Coated Carbon Steel TankFlash/Floc Mixing Tanks with MixersPlate PacksVertical Installation = Small FootprintEven Hydraulic Distribution Between PlatesTechnical Data SheetData ModelXBC-5XBC-10XBC-20XBC-30XBC-40XBC-50XBC-60XBC-80XBC-100Capacity(m3/h)510203040506080100Motor power(kw)/0.55Scraper travelling speed(m/min)/2.262.12.32.52.552.642.82Inclined plate quantity (pc)101538465056586064Inclined plate size(mm)1060*12001350*1465750*1600900*16001050*16001110*16001150*18001200*12001300*2000Equivalent settling area(m2)6.3614.8322.833.124249.760.037283.2Length (mm)240030003750405043404525472549755175Width (mm)134017402220252028203090319032903490Height(mm)305032004650465047004900510053305330The height from inlet pipe to ground (mm)130012503350335033503600365038253825The height from outlet pipe to ground (mm)255026803400340034503450365038253825Inlet pipe(mm)DN80DN100DN125DN150DN150DN150DN150DN200DN200Outlet pipe(mm)DN80DN100DN125DN150DN150DN150DN150DN200DN200Sludge discharge pipe(mm)DN150DN200Inspection manhole(mm)/DN600This is just for reference, if any special request, please contact with our sales and technicians, thanks.ApplicationsIndustrial production wastewaterIndustrial chemistry--purification and concentrationPaper pulp and paper-making industryIron and steel industry--Phosphorus removalMetal hydroxides wastewaterPurification of biological cleaning processCirculating water from potato and vegetablesDust wiper wasterwater treatment from power plant    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
