Low Noise Rotary Air Blower Waste Water Treatment Blower

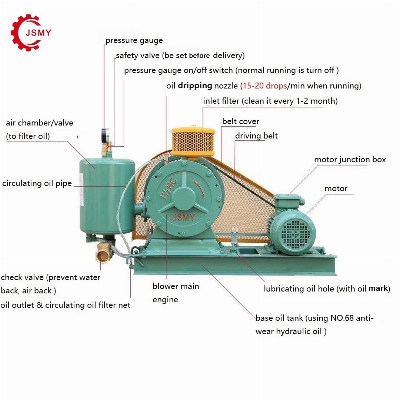

HC series rotary air blower structure and working principleRotary blower air pressure range:  0.1-0.5 kgf/cm2The rotary blower has an exquisite structure and is mainly composed of six parts: motor, air filter, blower main engine, air chamber, base (with oil tank), oil dripping nozzleThe blower operates on the eccentric rotor offset in the cylinder, it makes the volume change between the lobes in the rotor slot to suck in, compress, and discharge airDuring operation, the pressure difference of the blower is used to automatically send the lubricating oil to the drip nozzle, drip into the cylinder to reduce friction and noise, and at the same time reduce the return of air in the cylinderThe rotary blower structure and strokeThe features:. Low noise, low energy consumption, stable operation, easy installation. Resistance to load changes, stable air flow, with air chamber for smooth air release. Excellent materials, exquisite structure and outstanding performanceApplications:Water treatment aeration Hospitals and laboratories Sewage Mixing and aeration Vacuum paper feeding in the printing industry Electroplating tank and industrial water mixing and aerationAir supply for Plastic welding, blowing Burner spray, glass industry and othersHC - Low- noise rotary air blower specificationsModelPort DN(mm)MotorpowerFrequencySpeedAIR FLOW (M3/min)V belt pulleyV typeOil  tankOil storageOil quantityWeightRPM0.1kgf/cm20.2kgf/cm20.3kgf/cm20.4kgf/cm20.5kgf/cm2blowermotorbeltNet weightGross weightHC-20S1/2"(15)0.25KW50HZ4500.1620.1560.150.1430.1386 1/2"2"A-7871.0L(0.7L)30KG38KGHC-201S1/2"(15)0.37KW50HZ6000.2150.2090.20.1930.1856 1/2"3"A-8131.0L(0.7L)32KG40KGHC-25S3/4" (20)0.37KW50HZ4300.2780.2650.2500.2370.2258"3"A-8891.2L (0.9L)40KG45KGHC-251S3/4" (20)0.55KW50HZ4500.320.310.30.290.298"21/2"A-10161.5L (1.1L)44KG51KGHC-30S1"(25)0.55KW50HZ4300.360.350.340.330.3210"3"A-11181.5L (1.1L)50KG57KGHC-301S1"(25)0.75KW50HZ5200.430.4250.420.410.410"31/2"A-11431.5L (1.1L)50KG57KGHC-40S11/4" (32)0.75KW50HZ5000.680.670.660.650.6212"4"A-13212.5L (1.7L)80KG88KGHC-401S11/4"(32)1.5KW50HZ5800.840.820.80.740.712"41/2"A-13212.5L (1.7L)85KG93KGHC-50S11/2"(40)1.5KW50HZ4301.21.151.11.081.0514"4"A-16003.5L (2.3L)120KG130KGHC-501S11/2"(40)2.2KW50HZ5001.51.471.451.411.414"41/2"A-16003.5L (2.3L)125KG135KGHC-60S2"(50)2.2KW50HZ45021.951.91.81.7516"5"B-18805.5L (3.8L)190KG223KGHC-601S2"(50)4KW50HZ5402.52.452.42.32.2516"6"B-18805.5L (3.8L)200KG233KGHC-80S21/2"(65)4KW50HZ4302.952.82.752.652.618"51/2"B-21088L (6L)250KG268KGHC-801S21/2"(65)5.5KW50HZ5003.653.63.53.43.318"6"B-21348L (6L)275KG293KGHC-100S3" (80)5.5KW50HZ3904.54.454.44.34.220"51/2"B-236220L (16L)375KG395KGHC-1001S3" (80)7.5KW50HZ4205.65.55.45.35.220"6"B-236220L (16L)390KG410KGHC  Model Performance Curve HC Model Noise Curve Impeller CNC machining centerWorking shopApplication picturesPacking & deliveryOur wooden case is with fumigation sign, It is Moisture-proof  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
