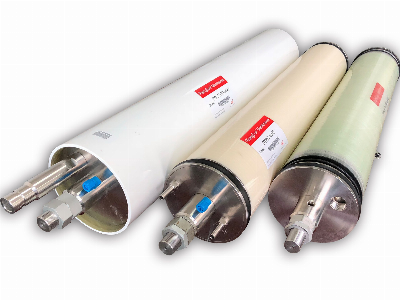

Stro / Stnf Membrane Element for Waste Water Treatment

RisingSun Membrane's Spacer Tube (ST) Module can be used for sea water desalination and waste water treatment. We can offer either reverse osmosis or nanofiltration membrane sheet in order to deal with different kinds of waste water.  Special Membrane Feed SpacerWe use a very special ladder type feed spacer, which only come into marginal contact with their neighbouring membrane sheet. In this way, the spacers are able to minimise the resistance that is exerted on the feed flow.This special design also greatly reduces the build up of fouling materials compared with common element.Special Configuration with flow direction   Color InstructionGreen: Feed WateBlue: PermeateRed: Seals and O-ringsOn this ST module the feed is from the top.The feed water is diffused by the top seal plate to send the feed water evenly around the top of the membrane element.The feed water flows down through the membrane element, as it does pure water permeates and flows out thourgh centre collection device into the space around the tie rod and flows down to the permeates outlets.The concentrated feed water is channelled by the bottom seal plate to the bottom HP connection and out of the module.Features1. Spacer tube (ST) module is high strength design, up to 120 bar operating pressure.2. Open feed spacer with low flow resistance and concentration polarization.3. Spiral wound structure with more membrane area. 4. Membrane is long using life.5. Competitive price and fast delivery.6. Cross replacements: Nanostone (Rochem), Pall.STRO Membrane element specification (operation pressure 90bar)  TypeSTROSTNFModelSTRO3-8035STRO5-8042STNF2-8042Membrane sheet typeRO3RO5NF2Effective membrane area (m2) 252727Construction *Spiral Wound Element with GRP Outerwrap,Brine SealFeed flux range (m3/h)5.5-125.5-12Recommend flux (m3/h)1010Permeate flux ** (m3/d)232425Nominal rejection ** (%)98.599.598.0Minimum rejection (%)97.599.096.0Feed spacerSpecial open type (ladder type)Element Dry Weight18kgs Max. element pressure drop (bar)1.01.0Max. operation pressure (bar)9090Max. operation temperature (ºC)4545pH continuous operation3-113-11pH CIP2-122-12Chlorine tolerance (ppm)≤0.1≤0.1Brine seal to be installed in flow direction on the low pressure side/element outlet side.** RO3 test condition: 2,000mg/l NaCl solution at 15.5bar applied pressure, 15% recovery, 25ºC; RO5 test condition: 32,000mg/l NaCl solution at 55bar applied pressure, 8% recovery, 25ºC; NF2 test condition: 2,000mg/l MgSO4 solution at 7bar, 15% recovery, 25 ºC. There may have about ±15% change for individual module flow rate.Performance specifications shown above are nominal values. Individual module permeate flow rate may vary based on inlet water condition. Note: We could offer any membrane sheet to make ST membrane module, for example, STRO4-8035, STRO5-8035, STRO1-8042, STNF1-8042, etc.  Model80358042Total tie rod length A (mm)11251305Vessel length B (mm)9701150Vessel to top of frame D (mm)7575Inlet & outlet connections (inch)1 inch Victaulic1 inch VictaulicPermeate connection (mm)2 x G3/8"-90° elbow for 9mm  hose  Operation Pressure (bar)7590Membrane module diameter C (mm)216220ApplicationsSea WaterIndustrial Waste waterTraditional spiral wound RO/NF concentrates.Landfill leachateWhy us?1. Our Spacer Tube (ST) modules use high quality membrane sheet from USA.(BW & SW membrane sheet), which can obtain a 99.5% rejection rate based on 120bar operation pressure.2. We make membrane module in China, our cost is competitive.3. We offer OEM service.4. We have large production capacity so fast delivery.5. Our ST module was used in the largest project in China, more than 2,000 pieces.The performance is very good.Our Team:  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
