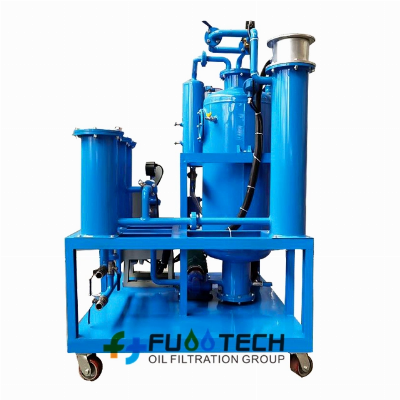

Vacuum Oil Recycling Machine for Hydraulic Oil and Lube Oil

HOC Series Hydraulic oil Cleaning & Filtration machineDescription:Generally, hydraulic oil is to be maintained at very high quality of Purification. The Oil often having large sizes of particles is passed through coarse type filter, to trap the large sized particles. Having taken care of micronic and sub-micronic particles, it is further finely cleaned by electro-statically, operated hydraulic oil cleaning system brought to the international standards.Our HOC Series Hydraulic oil Cleaning & Filtration machine is used for cleaning and filtering the various types of hydraulic oil and other industrial lube oils such as gear oil, compressor oil, coolant oil, etc.. used in the power generation, hydraulic system, machinery, metallurgy, mining, petroleum, chemical industry and other fields.Cooking oil Cleaning machine can effectively purify hydraulic oils at grade ISO - VG - 46, 68, 100, etc… by reducing the water content from 2000 ppm downto 5 ppm and separates (removes) the free water, sludge, gas content and carbon from Lube oil & hydraulic oil.Oil Result after Purification                                      Moisture   (water content)≤100 PPM (remove 100% of free water & 99.5% of dissolved/emulsified water)Gas/Air Content≤0.1%Suspended Particles   (Filtration precision)≤ 5 micronDemulsificationNew oil≤15min, running oil≤30minCleanliness≤NAS 1638-Grade 5Features:1. The machine adopt deeply and precisely FH rectangular filtering system and highly polymeric adsorbing material filter. So the machine has strong ability to remove the particles and impurities.2.  Adopt the high quality filter materials, which have a good function in anti-corrosive, thermo stable, mechanical strength. Especially, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.3. The combination of coalescing separation filter and vacuum dehydration system which dewater effectively and thoroughly.4. The unique degas and dewater technology: Using the Duplex 3D Stereo-Evaporation technical, which can separate the water and gas from the oil quickly by the Multi-level water-oil separation technology. It can remove the free and dissolved water from the oil thoroughly.5. Strong capability of breaking emulsification.6. Advanced dielectric condensation device7. Advanced temperature controlling system controls the oil's temperature and heater's working automatically8. High quality pressure controller keeps the whole operation safely.9. Able to drain water on line through the water receiver device. It is easy to control this machine.10. Adopt Double-infrared fluid level auto-control systems which can control oil inlet and oil outlet quantity automatically.11. Adopt a trinity of interlocked preventive device to keep heater, oil pump and filters safe and reliable.12. Low maintenance cost and time. Technical specifications:ItemUnitHOC-10HOC-20HOC-30HOC-50HOC-100HOC-150HOC-200HOC-300Flow rateL/H600120018003000600090001200018000Vacuum degreeMpa-0.06 ~ - 0.095Working pressureMpa≤0.4Temperature Control RangeºC0 ~ 100Operation   TemperatureºC50 ~ 70Power supply 380 VAC, 50 Hz, 3   Phase (or as per required)Working noiseDB (A)≤ 65 ~ 90Electric heating   powerKW18242630486096135Total electric   powerKW19.325.327.632.65669106.5147Inlet (outlet)   calibermmФ25Ф25Ф25Ф32Ф42Ф50Ф50Ф60Dimension (L × W × H)mm1190 x1000x 14001550x1050x16001600x1050x16501600x 1150x17001750 x1250x 18001900x1600x19501900x1700x20002100x1700x2100WeightKg450550600750850100012001500  Note:   1. The dimension and weight will be changed with changing of technical specs.              2. All the specs can be customized according to client's requirements.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
