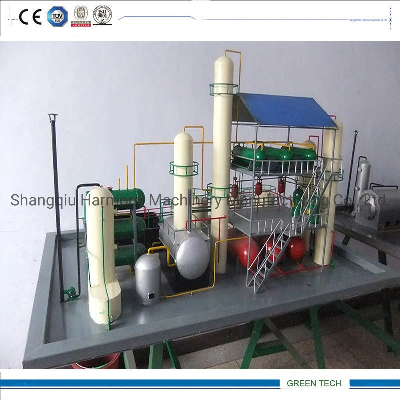

Used Diesel Oil Recycling Equipment

1. Work Flow1) Pumping the feedstock into the sedimentation tank 1# and 2#, adding some catalyst, injecting the air by compressor into the sedimentation tanks for making the feedstock and catalyst mixed well, sedimentation quietly for 5hours. 2) After sedimentation, discharging the sediment, pumping the feedstock after sedimentation into distillation kettle. 3) Starting the high-temp circulated oil pump for distillation and the heating furnace, the feedstock will be heated during distillation kettle and furnace, when they reach the distillation cuts temp, through the rectifying tower into the oil-gas cyclone sedimentation tank for separating the ash, then into the oil-gas condenser and getting the diesel and gasoline separately stored. 4) The part of non-condensable gas into the vacuum buffering tank, vacuum pump, water seal, back fire device and into the heating furnace for supplying heat. 5) When there is "low" alarming on the liquid level, it should start to pump the feedstock (after sedimentation in tank 1# and 2#) into the distillation kettle, the whole distillation process is continuous. 6) When there is no alarming on the liquid level, but the diesel color is very dark, it shows there is much more residual oil in the distillation kettle and should discharge, then put into the residual oil tank. 1) Pumping the feedstock into the sedimentation tank 1# and 2#, adding some catalyst, injecting the air by compressor into the sedimentation tanks for making the feedstock and catalyst mixed well, sedimentation quietly for 5hours. 2) After sedimentation, discharging the sediment, pumping the feedstock after sedimentation into distillation kettle. 3) Starting the high-temp circulated oil pump for distillation and the heating furnace, the feedstock will be heated during distillation kettle and furnace, when they reach the distillation cuts temp, through the rectifying tower into the oil-gas cyclone sedimentation tank for separating the ash, then into the oil-gas condenser and getting the diesel and gasoline separately stored. 4) The part of non-condensable gas into the vacuum buffering tank, vacuum pump, water seal, back fire device and into the heating furnace for supplying heat. 5) When there is "low" alarming on the liquid level, it should start to pump the feedstock (after sedimentation in tank 1# and 2#) into the distillation kettle, the whole distillation process is continuous. 6) When there is no alarming on the liquid level, but the diesel color is very dark, it shows there is much more residual oil in the distillation kettle and should discharge, then put into the residual oil tank. 1) Pumping the feedstock into the sedimentation tank 1# and 2#, adding some catalyst, injecting the air by compressor into the sedimentation tanks for making the feedstock and catalyst mixed well, sedimentation quietly for 5hours. 2) After sedimentation, discharging the sediment, pumping the feedstock after sedimentation into distillation kettle. 3) Starting the high-temp circulated oil pump for distillation and the heating furnace, the feedstock will be heated during distillation kettle and furnace, when they reach the distillation cuts temp, through the rectifying tower into the oil-gas cyclone sedimentation tank for separating the ash, then into the oil-gas condenser and getting the diesel and gasoline separately stored. 4) The part of non-condensable gas into the vacuum buffering tank, vacuum pump, water seal, back fire device and into the heating furnace for supplying heat. 5) When there is "low" alarming on the liquid level, it should start to pump the feedstock (after sedimentation in tank 1# and 2#) into the distillation kettle, the whole distillation process is continuous. 6) When there is no alarming on the liquid level, but the diesel color is very dark, it shows there is much more residual oil in the distillation kettle and should discharge, then put into the residual oil tank. 2.Specification  NO.NameParameter1The raw materials:Fuel oil /waste machine oil / transformer oil/waste lube2Out putBase oil /non-standard diesel3Daily capacity:10ton -15ton/day4The size of reactor(L*W*H)4000*1500*2500mm6.Reactor materialQ345R7.Final oil out rate75-85 %8.Feeding waycontinuous9Slag outAuto continuous10Working area500-600 square meters11Cooling wayBy water12.Heating wayDirect/indirect13Working pressureslightly negative14Effective working temperature280-400ºC15Power15kw16voltage220v/380v17Fuel to heatingCoal wood, gas oil, etc18typePollution free19.certificateCE.ISO3.Major partsa.Reactor b.Catalyst tower c.Heat exchanger d.Pipe condenser e.condenser f. filter g. Pipe combination cooling pool h. Light component oil collection tank i. Middle component oil collection tank j. Vacuum device k .Residue oil tank l. Smoke dust disposal device Include strong spray tower,draft fan,activated carbon absorption tower,recycle purify water pool m .Filter sand filter n .Water sealing o .Stirring tank p. Operation platform q .Power distributi
