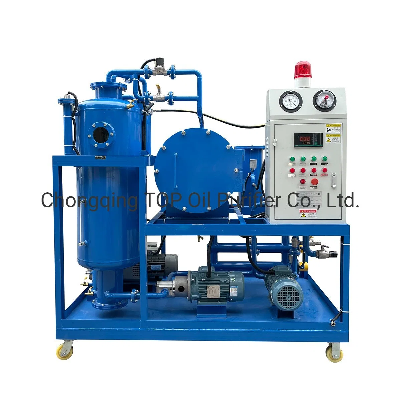

Oil Separator Machine Mini Turbine Oil Recycling Equipment

TY Series Turbine Oil Purification Machine  ApplicationOur TY Series turbine oil purifier is applied for on-line turbine oil filtration in electric power, metallurgical, chemical engineering industries. It is good at emulsion breaking, dehydration and removing moisturem gasm impurities, soap, gelatin, acid, pigment and metal particulates in emulsified turbine oil and low-viscosity lubricating oil as well as turbine oil used in other machinery and electric power equipment, and improve the oil quality to ensure a normal work of the generator sets adjustment and lubrication system. Feature1. it is strong ability of dehydration and breaking emulsion, that is easy to separate the great moisture and tiny moisture out of the used oil. Because of the special break emulsion device (water separator), the emulsified oil could be treat and become transparent. 2. It is strong ability of removing impurities, that is the big area and deep-seated accurate filtration material can eliminate the tiny particles from used oil that could replace oil system clean device, make great polluted oil system recovered and meet "the operating turbine oil pollution control standard".3. It is strong ability of automatic, safe and reliable operation. This model is used float ball level automatic control device that realizes auto working completely without manual labour, leads to a simple and stable operation.4. Thus, TY series is specially fit for applying to filter turbine oil, hydraulic oil and the low viscosity oil that contains lots of water or tiny particles which need to be precisely processed.1.It adopts the coalescence and separation technique and 3D-Evaporation technical and thin film evaporation technique, and it has strong ability to break emulsion and remove water from the oil.2. Optimized electric heating system with automatic constant temperature controller ensures the oil temperature to be even and stable.3. Precise multi-stage filtration system helps remove different kinds of impurities with high quality filter element of better ability of containing pollutants and long service life.4. Advanced infrared oil level control system and pressure protection device make operation simple and safe.5. It can purify any kinds of turbine oil used in steam turbine and water turbine online and onsite.6. Air cooling system helps cool down air and gases from the flash distillation column so as to extend the service life of vacuum pump, avoiding the inconvenience of water cooling. 7. The machine can also be installed with digital flow meter and timer to calculate and record the volume of output oil and working hours (it's optional).8. Aluminum electric control cabinet has the merits of heat conducting and anti-explosion9. Adopts interlocked protective system, which connected oil pump, heater, and oil level sensor, avoiding blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.10. High quality and low noise oil pump11. Hi-automatization operation, convenience, reliable, and safetySpecial features1. The plant is delivered ready for operation. 2. Continuously clean the oil3. On-line water content measuring device (optional)4. All oil treatment plants, type TY are equipped with an automatic Anti-Foam Control System. 5. The plant is equipped with built-in control and safety devices, which provides for a maximum operating security. 6. Minimised power consumption through optimised degassing (excellent efficiency factor). 7. Standardized filter housing for 1 micron , 5 micron, 20 micron and 80 micron filter cartridges. 8. Automatic supervision of the degree of contamination of the fine filter cartridges9. All parts of the machine are stainless steel and food grade material 10. All plants are PLC controlled (optional)Technical ParameterTable 1 Vacuum Oil Purifier Technology StandardParameterUnitTY-10TY-20TY-30TY-50TY-100TY-200TY-300Flow rateL/min10203050100200300Vacuum degreeMpa-0.06~-0.095Working pressureMpa≤0.5Working temperatureºC≤40~60 (no more than 55ºC for purifying turbine oil.)Power SupplyV/Hz380/50/3P (Customized)Heating powerkW15182430608190Total powerkW172026326486100Inlet (outlet) dimensionmmΦ32Φ32Φ32Φ42Φ42Φ60Φ76Weightkg40048060070080011001350Overall dimensionLmm1300130014001400150018502100Wmm1000105011001150110013001400Hmm1600170018001850185019002000Table 2 After treated by machine  ItemGuarantee indexesMoisture content≤50 PPMDemulsification valueNew oil≤15min,running oil≤30minImpurity size≤1 micronGas content≤0.1%Clean degree≤4 Grade (NAS1638)  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
