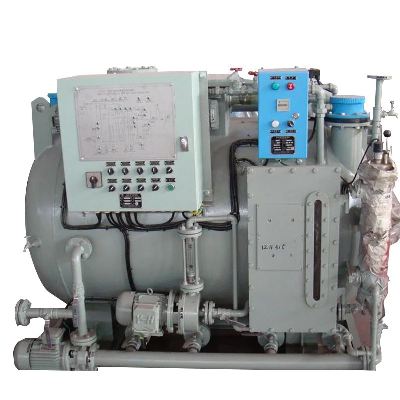

Marine Sewage Treatment Plant 15~440persons Sewage Water Treatment

LR Certification Sewage Treatment Plant 15~400persons Water TreatmentMarine Sewage Treatment Plant Specification:1. Adopting horizontal circular design, ellipse closures on both ends, pressure resistance and compact structure.2. The device is adopted auto-control, and compliance with the requirement of 24-hours unattended cabin.3. Adopting the "MBR" technology, devices allow to the narrow size, and solve the conflict of small space of cabin, but big volume of device.4. The intermittent aeration in bio-membrane tank and hollow fiber membrane tank, form the process of "aerobic anoxic", and resolve the problem of "nitrogen and phosphorus removal".5. The device is adopting the principle of "air-lifting" to transfer the sludge from sediment tank and membrane tank to aeration tank, meantimes the "pump stops and air never stopped", so as the scale on the membrane surface comes down. Due to back flushing and clean the membrane "online" usd technology patent.6. "On-line" cleaning technology, making the dirt on membrane off automatically, recover membrane flux. It can be solved the problem of opening the cleaning or replacement of membrane difficultly caused by the small space in cabin.7. The effluent after further treatment can be reached at the requirement of "water recovery".Meet the lastest standard MEPC.227(64) 8.Certification: CCS,EC,BV,RS,LR  Sewage Treatment Plant for 15~400p Water TreatmentPhotos of  Sewage Treatment Plant  Marine Sewage Treatment Plant Specification  ModelSWCM1015202530405060Treated LoadAverage Load (L/d)8401190154018902310308037804480Peak Load  (L/h)105149193237289385473560Organic Load  (kgBOD5/d)0.420.5950.770.9451.1551.541.892.24Rated Capacity(P)1015202530405060Max Capacity(P)1217222733445464ElectricityAC380V-50Hz / AC440V-60HzPower(kw)2.252.252.52.52.5333.5External Dimensions                        Length×width×height1350   ×   1200   ×   13701850   ×   1200   ×   14001660   ×   1400   ×   15501890   ×   1400   ×   15601980   ×   1500   ×   16502270   ×   1600   ×   17002300   ×   1700   ×   18202650   ×   1700   ×   1830WeightDry weight  (kg)9001000100011001200130014501600Wet weight  (kg)17752283264027403500440050735270Discharge StandardTSS
