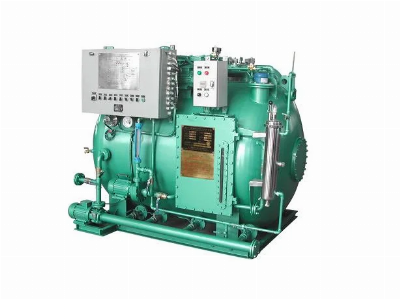

Marine Sewage 50persons for Ship/Marine Gray/Black Water Treatment

         Marine sewage 50persons for ship/marine gray/black water treatmentd                  - Specification: a) cted Structure in horizontal with covers in both ends to resistant the pressure  b) automatic control without needs of operator site monitoring in 24 hours  c) internal "MBR" technology to have impact structure to match limited space of cabin.  d) the intermittent aeration in bio-membrane tank and hollow fiber membrane tank, form the process of    "aerobic anoxic", and resolve the problem of "nitrogen and phosphorus removal".  e) by using "air-lifting" way to transfer the sludge from sediment tank and membrane tank to aeration tank, pump stopped without cutting air supplying, the dirt scale on the membrane come down. The life of membrane can be prolonged at least 8 to 9 years by back flushing and on line clean the membrane patent.  f) the online clean technology also avoid the problem of manual opening and cleaning, as well as replacing the membrane in the narrow space. g)The Effluent after further treatment  can be reached at the requirement of "water recovery'   -Performance1) Capability of disposed sewage:     a) Black water: excrement and urinefrom toilet     b) Gray Water: waste water form cooking room and bath room 2) It Can be developed to a sewage recycling system  -Technical DataModelSWCM 1520253040506080100120150200250300400Treated LoadAverage Load (L/d) 11901540189023103080378044806020770091001120014700182002310030800Peak Load  (L/h) 149193237289385473560753963113814001838227528883850Organic Load  (kgBOD5/d) 0.5950.770.9451.1551.541.892.243.013.854.555.67.359.111.5515.4Rated Capacity(P) 1520253040506080100120150200250300400Max Capacity(P) 1722273344546486110130160210260330440ElectricityAC380V-50Hz / AC440V-60HzPower(kw) 2.252.52.52.5333.5444667911External Dimensions                        Length×width×height 1850   ×   1200   ×   14001660   ×   1400   ×   15501890   ×   1400   ×   15601980   ×   1500   ×   16502270   ×   1600   ×   17002300   ×   1700   ×   18202650   ×   1700   ×   18302790   ×   1900   ×   20502706   ×   2000   ×   22003000   ×   2000   ×   22003080  ×   2200   ×   23003630  ×   2200   ×   23503880  ×   2400   ×   25704780 ×   2400   ×   26005980 ×   2400   ×   2600WeightDry weight  (kg) 100010001100120013001450160018502200230028003000330037004200Wet weight  (kg) 22832640274035004400507352706517826891661134013267165382035725417Discharge StandardTSS
